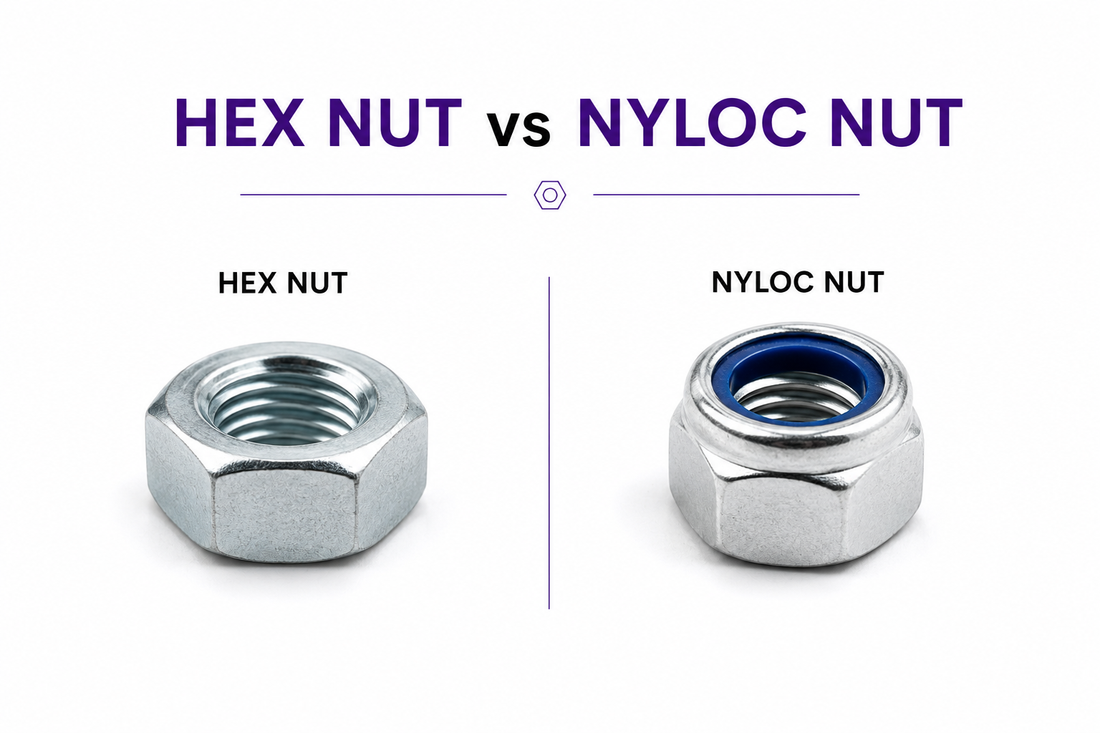

Hex Nut vs Nyloc Nut: When to Use Each

Both hex nuts and nyloc nuts thread onto a bolt or screw — but they behave very differently in service. Choosing the wrong one can mean a joint that loosens under vibration, or unnecessary cost and complexity where a simple hex nut would do. Here's how to tell them apart and when to use each.

What Is a Hex Nut?

A standard hex nut is a six-sided nut with a plain threaded hole. It relies entirely on friction and clamping force to stay in place. When tightened correctly against a surface, the friction between the nut face, bolt threads, and clamped material keeps it secure.

Hex nuts are the default fastener in most assemblies — simple, cheap, widely available, and fully reusable. Browse our range: Hex Nuts

What Is a Nyloc Nut?

A nyloc nut (nylon insert lock nut) is a hex nut with a nylon collar insert at one end. As the bolt passes through the nylon, it deforms slightly around the threads, creating a friction grip that resists loosening — even under vibration and dynamic loads.

The nylon insert does not rely on clamping force alone, which means the nut stays put even if the joint relaxes slightly over time. Browse our range: Nyloc Nuts | Flanged Nyloc Nuts

Head-to-Head Comparison

Property	Hex Nut	Nyloc Nut
Vibration resistance	Low — can loosen over time	High — nylon insert resists loosening
Reusability	Fully reusable	Limited — nylon degrades after ~5 uses
Installation torque	Standard	Higher — must overcome nylon resistance
Cost	Lower	Slightly higher
Temperature limit	Up to material limit (steel: 300°C+)	~120°C (nylon softens above this)
Prevailing torque	None	Yes — nut resists rotation even untightened
Standards	ISO 4032, DIN 934	ISO 7042, DIN 985

When to Use a Hex Nut

Hex nuts are the right choice for the vast majority of static, low-vibration assemblies:

• Structural joints — frames, brackets, and supports that don't move once assembled
• Frequently disassembled joints — where you need to remove and reuse the nut many times
• High-temperature environments — above 120°C where nylon would soften
• General purpose fastening — furniture, enclosures, non-critical assemblies
• 3D printed assemblies — captured hex nuts in printed pockets are a common design pattern

When to Use a Nyloc Nut

Nyloc nuts are essential wherever vibration or dynamic loading could cause a standard nut to back off:

• Motors and rotating machinery — vibration from motors will loosen hex nuts over time
• Wheels and axles — RC cars, bikes, trolleys, and carts
• 3D printer motion systems — bed carriages, linear rails, and belt tensioners
• Automotive applications — anywhere subject to engine vibration or road shock
• Safety-critical joints — where loosening could cause injury or damage
• Outdoor assemblies — thermal cycling can cause joints to relax; nyloc compensates

What About Flanged Nyloc Nuts?

A flanged nyloc nut adds a wide integrated washer flange to the standard nyloc design. This distributes the clamping load over a larger area — useful when fastening into soft materials, thin sheet metal, or plastic where a standard nut might pull through or deform the surface. Browse: Flanged Nyloc Nuts

Reusability: An Important Caveat

The nylon insert in a nyloc nut is a one-time locking mechanism. Each time the nut is removed and reinstalled, the nylon deforms a little more and loses some of its grip. As a general rule:

• Nyloc nuts are reliable for up to 3–5 uses
• After that, replace them — especially in safety-critical applications
• If you need a fully reusable locking solution, consider a hex nut with a thread-locking compound (e.g., Loctite) instead

Summary

• Hex nut — static assemblies, frequent disassembly, high temperatures, general purpose. Simple and reliable.
• Nyloc nut — vibration, dynamic loads, motors, wheels, safety-critical joints. Essential where loosening is a risk.
• Flanged nyloc — same as nyloc but with better load distribution on soft or thin materials.
