Self-Tapping vs Self-Drilling Screws: Which One Do You Need?
Self-Tapping vs Self-Drilling Screws: Which One Do You Need?
They both make threads as they go in, but only one has a built-in drill point. Learn the difference before fastening wood, sheet metal, roofing or cladding.

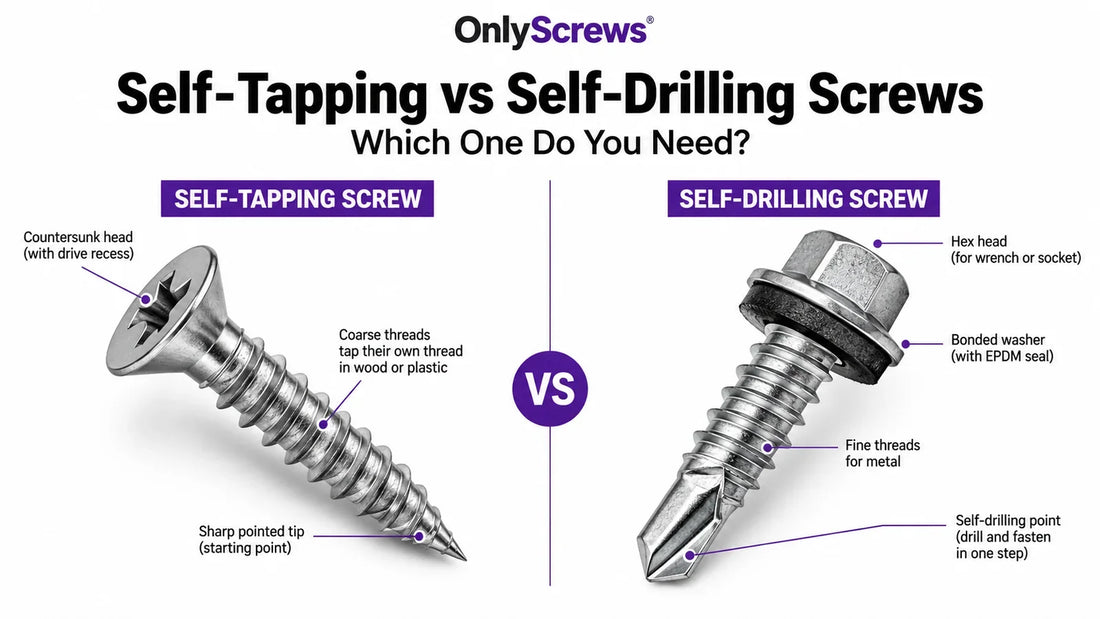

Self-tapping vs self-drilling screws: comparison table
| Feature | Self-tapping screw | Self-drilling screw |
|---|---|---|
| Tip | Typically pointed, thread-forming or thread-cutting design; not necessarily a drill bit | Integrated drill-point tip with cutting flutes |
| Hole preparation | Often needs a pilot in sheet metal; in wood, some designs drive without one | Usually no separate pilot within the rated drilling range |
| Thread creation | Forms/cuts a mating thread while driven | Drills first, then forms/cuts a mating thread |
| Common jobs | Woodworking, cabinet hardware, prepared sheet-metal holes | Sheet metal, steel framing, roofing, cladding, HVAC assemblies |
| Key limitation | Pilot-hole size and substrate suitability | Drill-point capacity, total grip thickness and screw material |
| Not interchangeable? | Correct: matching head, point, substrate, corrosion protection and installation method matters more than the name alone. | |
What is a self-tapping screw?
A self-tapping screw creates a mating thread in a material or a prepared hole as it is driven. The term covers more than one point and thread design. For example, a pointed screw sold for woodworking bites into timber; a sheet-metal tapping screw may require a correctly sized pilot hole before it can form or cut threads. Self-tapping does not always mean self-drilling.
For furniture, hinges and general woodworking, the screw head and material matter as much as the tip. A pan head bears against the surface, while a countersunk head is chosen where a flush finish is needed. In hardwood, close to edges, or where splitting is a concern, use a pilot hole appropriate to the screw and timber—even when the product can otherwise be driven directly.
Example from OnlyScrews: No.8 (4.2 × 16 mm) SS304 pan-head self-tapping wood screw. This pointed wood screw is not the same as a drill-point fastener designed to drill through steel.
What is a self-drilling screw?
A self-drilling screw has a drill-shaped point with cutting features. When matched to its specified metal thickness and substrate, it can drill a hole and form the fastening thread in one operation. This is why self-drilling screws are common in metal roofing, sheet-metal assemblies, steel framing and cladding.
Not all drill points are equal. The point's geometry, length, hardness and the manufacturer's stated drilling capacity limit what it can penetrate. The combined metal thickness, clamped material thickness, screw length and thread engagement also matter. Do not assume a screw rated for thin sheet metal can drill thick structural steel.
Example from OnlyScrews: 5.5 × 25 mm zinc-plated hex-head self-drilling roofing screw. Its product description lists a bonded rubber washer; the exact screw and substrate combination still needs checking.
Which screw should you choose for your project?
| Application | Better starting point | What to verify |
|---|---|---|
| Furniture and timber joints | Appropriate pointed wood/self-tapping screw | Wood type, pilot hole, head seating and splitting risk |
| Sheet metal with an existing hole | Suitable sheet-metal self-tapping screw | Pilot diameter, sheet thickness, thread engagement |
| Thin metal sheet to compatible steel frame | Rated self-drilling screw | Drill-point capacity and combined steel thickness |
| Metal roofing and wall cladding | Specified self-drilling roofing fastener with sealing washer | Washer type, roof profile, purlin material, exposure, correct compression |
| Gypsum board to framing | Drywall screw specified for the framing material | Frame material, point type, screw length, corrosion environment |
| Load-bearing or safety-critical connection | Approved engineered fastening system | Manufacturer design values, substrate, load, installation and code requirements |
Why roofing screws often have a washer
Roofing and cladding fasteners commonly use a hex head and a bonded sealing washer. When specified and installed correctly, the washer helps seal the penetration and distribute contact pressure. An EPDM washer is often selected for weather exposure; however, not every roofing screw has the same washer or coating. Match the complete fastener to the roof profile, substrate, corrosion environment and installation instructions.
For example, OnlyScrews lists the CORROSHIELD 12g (5.4 × 35 mm), 14 TPI self-drilling roofing screw with a 2.5 mm EPDM washer. That does not establish its rated drilling capacity: confirm the permitted substrate and thickness for the exact product before installation. Overdriving can deform the washer and undermine sealing; underdriving can leave an inadequate seal.
Five checks before buying
- Identify the base material. Wood, aluminium sheet, mild-steel sheet and steel framing require different point designs and may require different fastener materials.
- Measure thickness and grip. Include the sheets or components being clamped; check the screw's stated drilling range and sufficient thread engagement.
- Choose the head and drive. Pan head for surface bearing, countersunk for flush finishes, and hex-head washer screws where specified for roofing/cladding.
- Check corrosion protection. Indoor dry conditions, outdoor exposure, treated timber and coastal environments do not have identical requirements. Choose a compatible coating/material system.
- Check the installation method. Correct driver bit, perpendicular alignment, appropriate speed/torque, required pilot diameter (if any) and washer seating all matter.
How to install them without damaging the joint
| Stage | Self-tapping | Self-drilling |
|---|---|---|
| Prepare | Mark position; drill specified pilot where required | Check drill-point rating and mark position; do not predrill unless specified |
| Align | Hold the screw square to the surface | Hold the drill point square to the surface |
| Drive | Use matching driver and controlled torque | Allow the point to cut; avoid excessive force, speed or overheating |
| Finish | Seat head without stripping the mating thread | Stop when clamped; if a sealing washer is present, compress only as specified |
| Inspect | Check seating, alignment and joint condition | Check full penetration, engagement, clamping and seal where relevant |
Use suitable eye protection when drilling or fastening. The KARAM polycarbonate protective eyewear is a current OnlyScrews listing. If you need to prepare a pilot hole, HSS drill bits are available; do not treat the linked 3 mm bit as a universal pilot size.
Common mistakes to avoid
| Mistake | Why it causes trouble | Better practice |
|---|---|---|
| Calling every pointed screw “self-drilling” | A sharp wood-screw tip is not a steel-drilling point | Inspect the tip and the manufacturer's application rating |
| Skipping a required pilot | Can strip, distort or split the substrate | Use specified pilot-hole dimensions |
| Using a drill-point screw in steel thicker than rated | May burn the point, fail to drill or produce a weak connection | Match point capacity to combined metal thickness |
| Overtightening roofing washers | May deform the seal or damage roofing sheet | Use recommended driver settings and washer compression |
| Assuming zinc plating is sufficient everywhere | Corrosion risk depends on environment and material compatibility | Select coating or stainless grade to suit exposure |
Related screws and tools at OnlyScrews
Explore selected OnlyScrews products and tools relevant to these applications. Check current stock and the complete product specification before ordering; the correct drill point and material depend on your job.
No.8 (4.2 × 16 mm) SS304 Phillips pan-head self-tapping wood screw
Pointed wood-thread screw; not a metal-drilling tip.
View current product details →
No.6 (3.5 × 19 mm) SS304 Phillips countersunk wood screw
Countersunk head for flush seating in suitable wood.
View current product details →
5.5 × 25 mm zinc-plated hex-head self-drilling roofing screw
Drill-point metal-roofing fastener with bonded rubber washer.
View current product details →
CORROSHIELD 12g (5.4 × 35 mm) 14 TPI roofing screw
Corrosion-protective coating and 2.5 mm EPDM washer; verify assembly compatibility.
View current product details →
3.5 × 25 mm black-oxide Phillips bugle-head gypsum screw
Application-specific drywall screw; not a roofing or structural substitute.
View current product details →
3 mm HSS parallel-shank drill bit
Example HSS bit only; choose pilot diameter from screw and substrate data.
View current product details →
KARAM polycarbonate protective eyewear
Eye protection for drilling and fastening work.
View current product details →Frequently asked questions
Are self-drilling screws also self-tapping?
Yes. Self-drilling screws are a subset of self-tapping screws: they drill their own hole with a drill point, then create the mating thread.
Do self-tapping screws need a pilot hole?
Sometimes. Many self-tapping metal screws need a pilot hole, while some pointed wood screws can be installed without one. The exact screw, substrate and proximity to edges determine the method.
Can I use a self-tapping wood screw in steel?
Do not assume so. A pointed wood screw is not a metal drill bit. For steel, select a fastener designed for the metal and use the required pilot or a correctly rated self-drilling point.
Are roofing screws waterproof?
Sealing washers can help make a properly designed and installed roofing penetration weather-resistant, but no screw guarantees a leak-free roof independently of installation and roof-system details.
Can a self-drilling screw be reused?
Reuse depends on the fastener, substrate, existing hole and application. A damaged or loosened mating thread may not hold reliably; replace fasteners and follow the manufacturer's requirements, especially for critical joints.
Bottom line
Choose a self-tapping screw when the screw is designed to form threads in your chosen material or a correctly prepared hole. Choose a self-drilling screw when you need a rated drill point to create a hole in compatible metal and form the thread in one operation. For roofing, also verify the sealing washer, coating and installation requirements. The right fastener is the one whose full specification matches the joint—not merely the one with the more convenient name.
