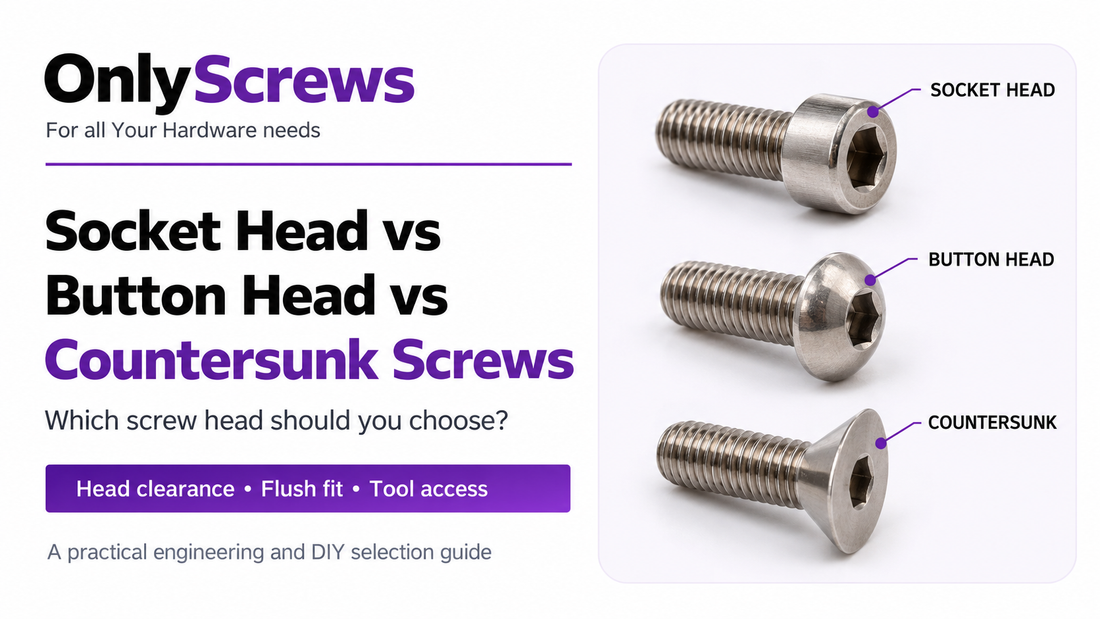

Socket Head vs Button Head vs Countersunk Screws: Which Should You Use?
Socket Head vs Button Head vs Countersunk Screws: Which Should You Use?
A screw's head shape determines how much space it occupies, how it bears against a surface and whether it can sit flush. Here is a practical way to choose between three common Allen-drive screw styles.
The quick answer
Choose a socket head cap screw when a taller cylindrical head and a deeper internal hex drive fit your assembly. Choose a button head screw when a lower, rounded profile is more important and the joint's load requirements allow it. Choose a countersunk screw when the head must sit flush with a properly prepared countersink.
Socket vs button vs countersunk: comparison
| Feature | Socket head cap | Button head | Countersunk |
|---|---|---|---|
| Head profile | Tall cylindrical | Low rounded dome | Tapered underside with flat top |
| Above-surface clearance | More clearance required | Lower protrusion | Flush when correctly countersunk |
| Seat preparation | Flat bearing surface | Flat bearing surface | Matching countersink geometry |
| Tool access | Internal hex, typically deeper engagement | Internal hex, often shallower | Internal hex; tool must reach recessed head |
| Loadability caution | Check property class and joint | Head geometry may limit loadability | Head geometry has reduced loadability under ISO 10642:2026 |
| Typical fit | Machinery, fixtures, assemblies with head clearance | Enclosures, panels, exposed fasteners | Sliding surfaces, flush panels, recessed hardware |
Understand the head geometry
Conceptual side profiles, not to scale. Actual head dimensions depend on the screw standard and size.
1. Socket head cap screws: where head clearance is available
A socket head cap screw has a cylindrical head and an internal hex drive. It is useful in machinery, jigs, brackets and equipment where a tool can access the recess and the head does not interfere with moving parts or covers.
For a specified joint, confirm the screw's material and mechanical property class, head bearing area, available Allen-key clearance and tightening method. A socket head is not automatically stronger merely because it looks taller; load capacity depends on the actual fastener and assembly.
3. Countersunk screws: for a truly flush finish
A countersunk (CSK) screw has a conical underside and a flat upper face. When the mating part has a correctly sized countersink, the head can finish approximately flush with the surface. This is useful for sliding clearances, flush covers and assemblies where a projecting head would interfere.
Never force a countersunk screw into a flat hole or use the head as a substitute for a properly prepared seat. Check the countersink angle and diameter against the specific fastener drawing. The current ISO 10642:2026 standard identifies reduced loadability due to countersunk head design and calls for careful alignment of the head and bearing surface.
Conceptual cross-section. Not a dimensional machining instruction.
Choose by the constraint that matters
Selection shortcut; confirm actual joint requirements and fastener specification before purchase.
| Project | Likely first option | Check before ordering |
|---|---|---|
| CNC jig or machine fixture | Socket head | Head clearance, load, socket access |
| Enclosure or panel with visible screws | Button head | Protrusion, head loadability, bearing face |
| Sliding plate or flush cover | Countersunk | Seat geometry, material thickness, loadability |
| 3D-printed part | Depends on wall thickness and seat | Insert/nut engagement, creep, cracking, clamp load |
Check size, length and tool fit before buying
First confirm the metric thread size and pitch (for example, M4 coarse thread) and the required engagement. Next check whether the screw's nominal length is measured under the head or includes the countersunk head; use the applicable product drawing rather than assuming all screw types are measured alike.
Then compare head diameter and height against the available space, and make sure your Allen key seats fully. For countersunk fasteners, check the seat geometry and remaining material under the head. For printed polymers and softer materials, evaluate local bearing pressure and long-term creep rather than relying on a generic torque number.
| Before checkout | Why it matters |
|---|---|
| Thread size and pitch | Must match nut, insert or tapped hole |
| Length reference | Head style can change measurement convention |
| Head diameter and height | Determines clearance and bearing geometry |
| Drive size and accessibility | Prevents poor tool engagement and recess damage |
| Material and property class | Needed for environmental and mechanical suitability |
| Surface/seat geometry | Flat heads need flat seats; CSK heads need matching countersinks |
Shop verified OnlyScrews examples
These six SS304 Allen-drive listings were checked against the current Shopify catalogue on 27 October 2026. All were marked active with positive reported inventory at the time of review. Check the product page again for current availability, exact dimensions and selling units.
Related guides: How to Measure Screw LengthM2 vs M3 vs M4Fasteners for 3D-Printed Parts
Frequently asked questions
Is a button head screw the same as a socket head cap screw?
No. Both may use an internal hex drive, but a button head has a lower domed profile while a socket head cap screw has a taller cylindrical head. Head geometry and loadability differ.
Which screw is best for a flush surface?
A properly matched countersunk screw and countersink are the usual choice. The screw will not sit flush without the correct seat.
Can I replace an M4 socket head with an M4 button head?
Only after verifying head diameter, height, bearing area, drive size, joint loading and the required fastener specification. The shared M4 thread size is not enough.
Are countersunk screws weaker?
Head geometry can limit loadability. ISO 10642:2026 explicitly specifies reduced loadability for the hex-socket countersunk screws covered by that standard. Evaluate the actual joint and fastener grade.
Can I countersink a 3D-printed plastic part?
Sometimes, but the design needs sufficient material thickness and controlled seating pressure. Excessive tightening or an unsuitable countersink can crack or distort the part.
Does SS304 determine the best screw head?
No. SS304 describes the stainless steel material family; head selection depends separately on geometry, load, clearance, environment and fit.
Final recommendation
For a typical assembly, start with socket head if a taller cylindrical head is acceptable, button head if lower protrusion is the priority, or countersunk when a properly prepared flush seat is essential. Confirm the exact screw drawing, head loadability and mating material before treating any of these as interchangeable.
