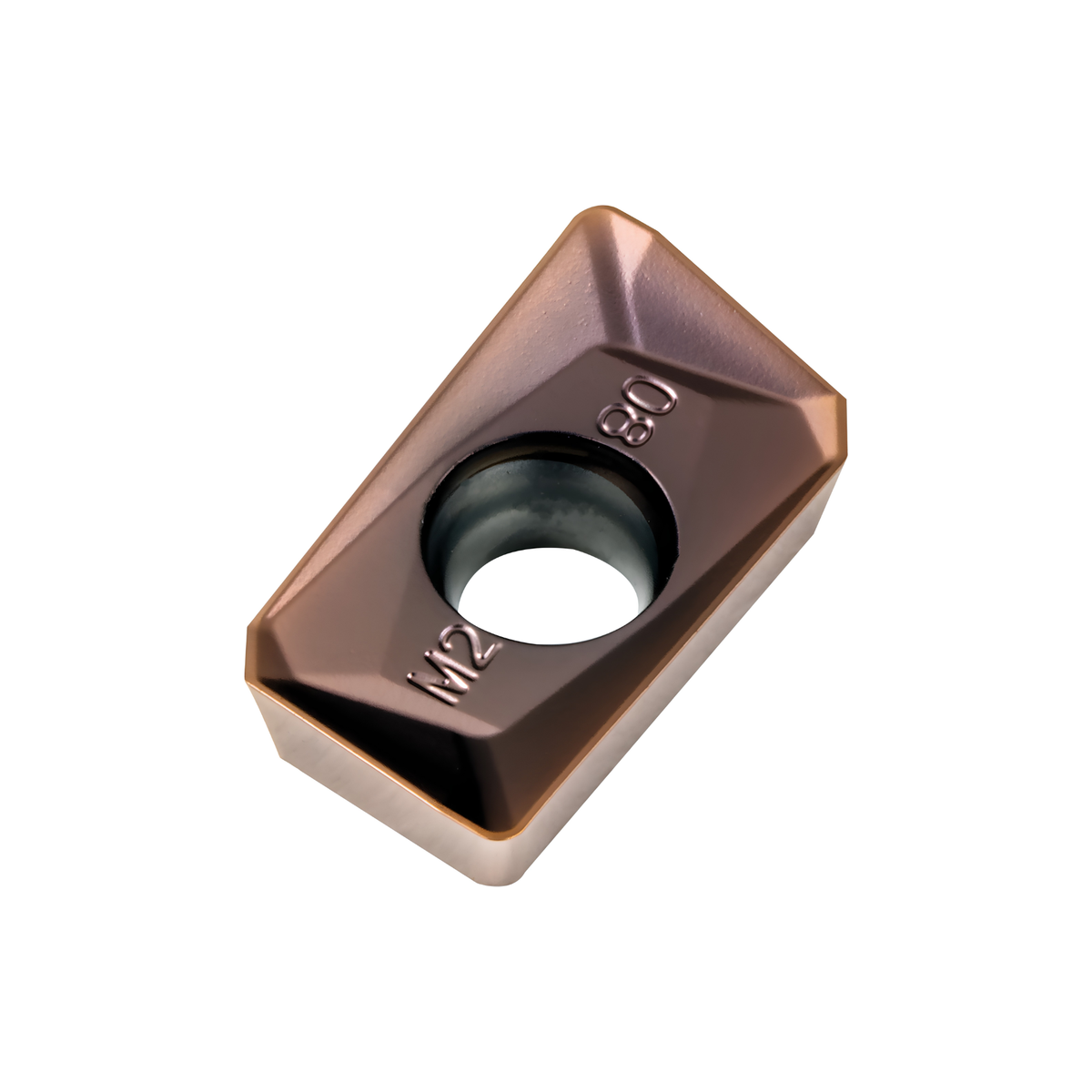

APMT 1135 PDER KT HA1463 Carbide Milling Insert for Stainless Steel, Titanium & Hardened Steel

Insert Type: Positive Milling Insert
Insert Shape: A = 85° parallelogram insert shape
Application: Shoulder Milling / General Milling

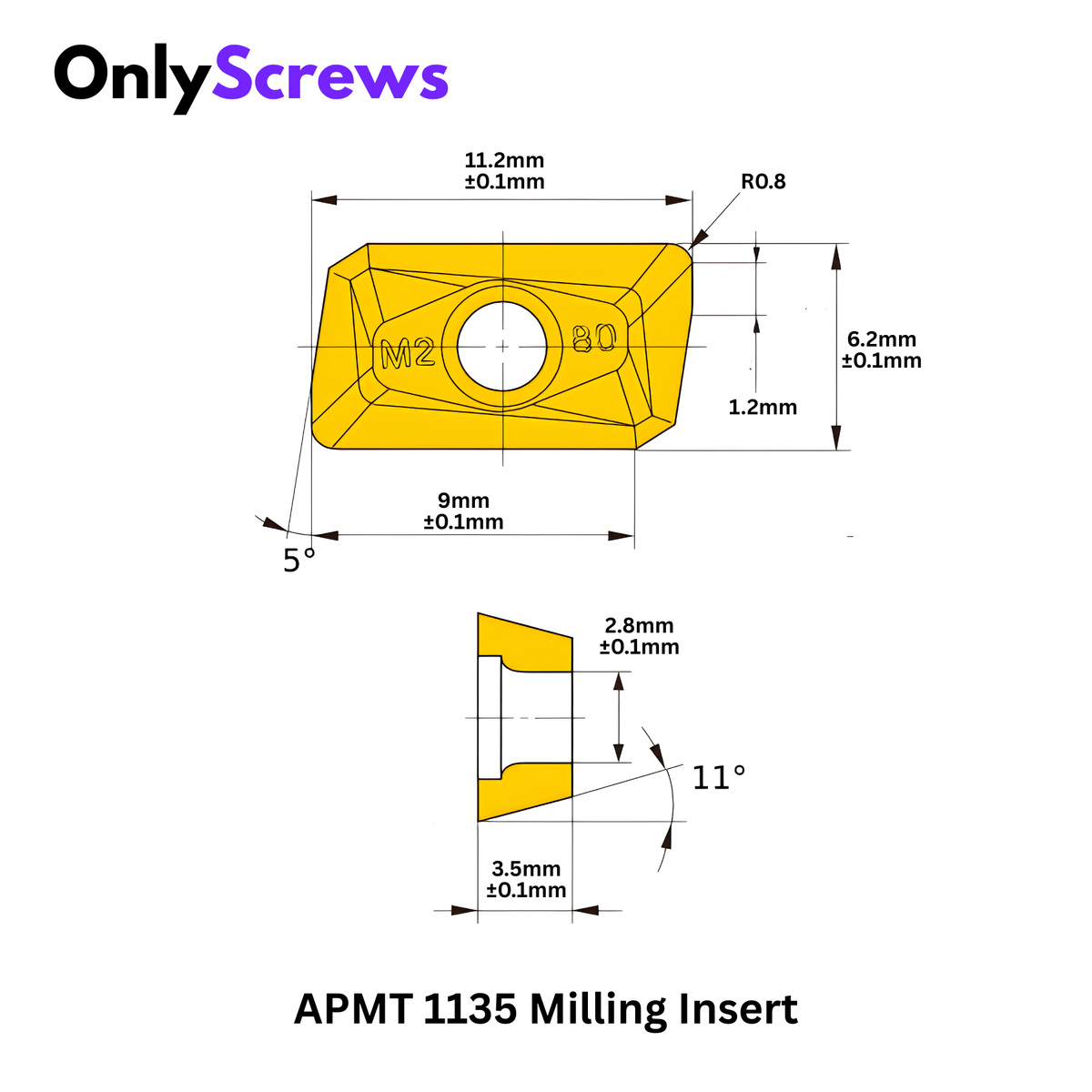

Insert Length: 11.2 mm
Insert Width: 6.2 mm
Insert Thickness: 3.5 mm
Mounting Hole Diameter: 2.8 mm
Corner Radius: 0.8 mm
Relief Angle: 11°
Cutting Direction: Right-Hand

APMT 1135 PDER KT HA1463 carbide milling insert is a positive indexable milling insert designed for compatible shoulder milling cutters, end mills and indexable milling tools. The 11° positive relief geometry helps provide efficient cutting with reduced cutting resistance, while the 0.8 mm corner radius provides a balance between edge strength and machining performance.

The replaceable indexable design allows worn cutting edges to be changed quickly, making it suitable for CNC milling, shoulder milling, profiling, facing and general metal machining.

Applications

• CNC shoulder milling
• Face milling
• Slot and step milling
• Profiling and contour milling
• General-purpose milling
• Steel and other machinable metals, according to the KT HA1463 grade's recommended cutting conditions
• CNC machining centres
• General engineering and fabrication
