APMT 1604 PDER KT HA1463 Carbide Milling Insert for Stainless Steel, Titanium & Hardened Steel

Insert Type: Positive Milling Insert

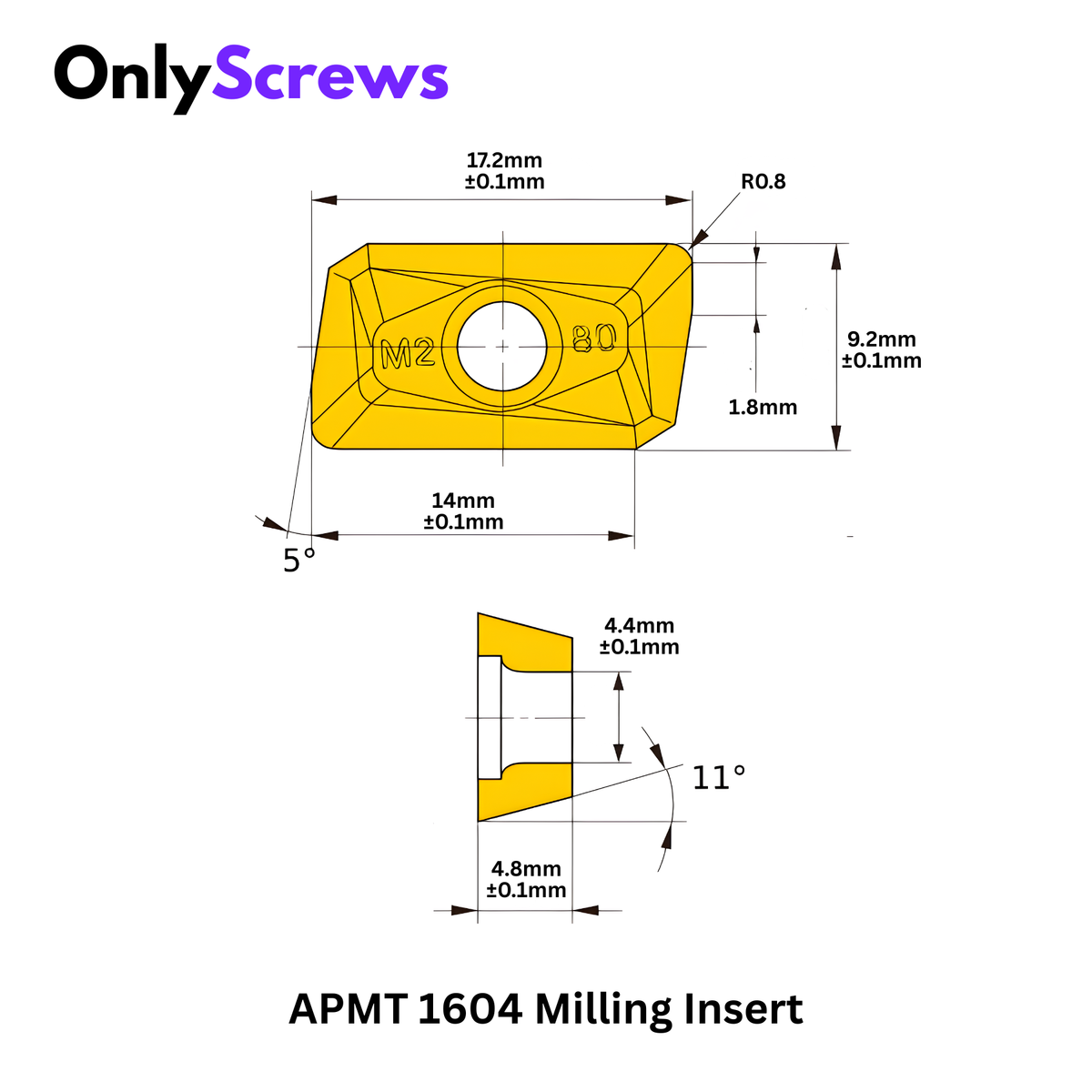

Insert Shape: A – 85° Parallelogram
Relief Angle: P – 11° Positive Clearance
Corner Radius: 0.8 mm
Insert Length: 17.2 mm
Insert Width: 9.2 mm
Insert Thickness: 4.8 mm
Mounting Hole Diameter: 4.5 mm
Cutting Direction: R – Right-Hand
Machining Application: Milling
Typical Use: Shoulder Milling, Face Milling & General Milling

APMT 1604 PDER KT HA1463 carbide milling insert is a positive indexable milling insert designed for compatible 90° shoulder milling cutters, face mills and indexable milling tools. Its positive 11° relief geometry promotes free-cutting action and helps reduce cutting resistance. The PDER geometry with 0.8 mm corner radius provides a practical balance between cutting performance and edge strength.

The indexable design allows the cutting insert to be replaced when worn, reducing tool-change time and maintaining consistent machining performance.

Applications

• CNC shoulder milling
• Face milling
• Side and step milling
• Profiling and contouring
• General-purpose CNC milling
• Machining steel and other suitable metals
• Engineering and fabrication
• CNC machining centres
• Indexable milling cutters
