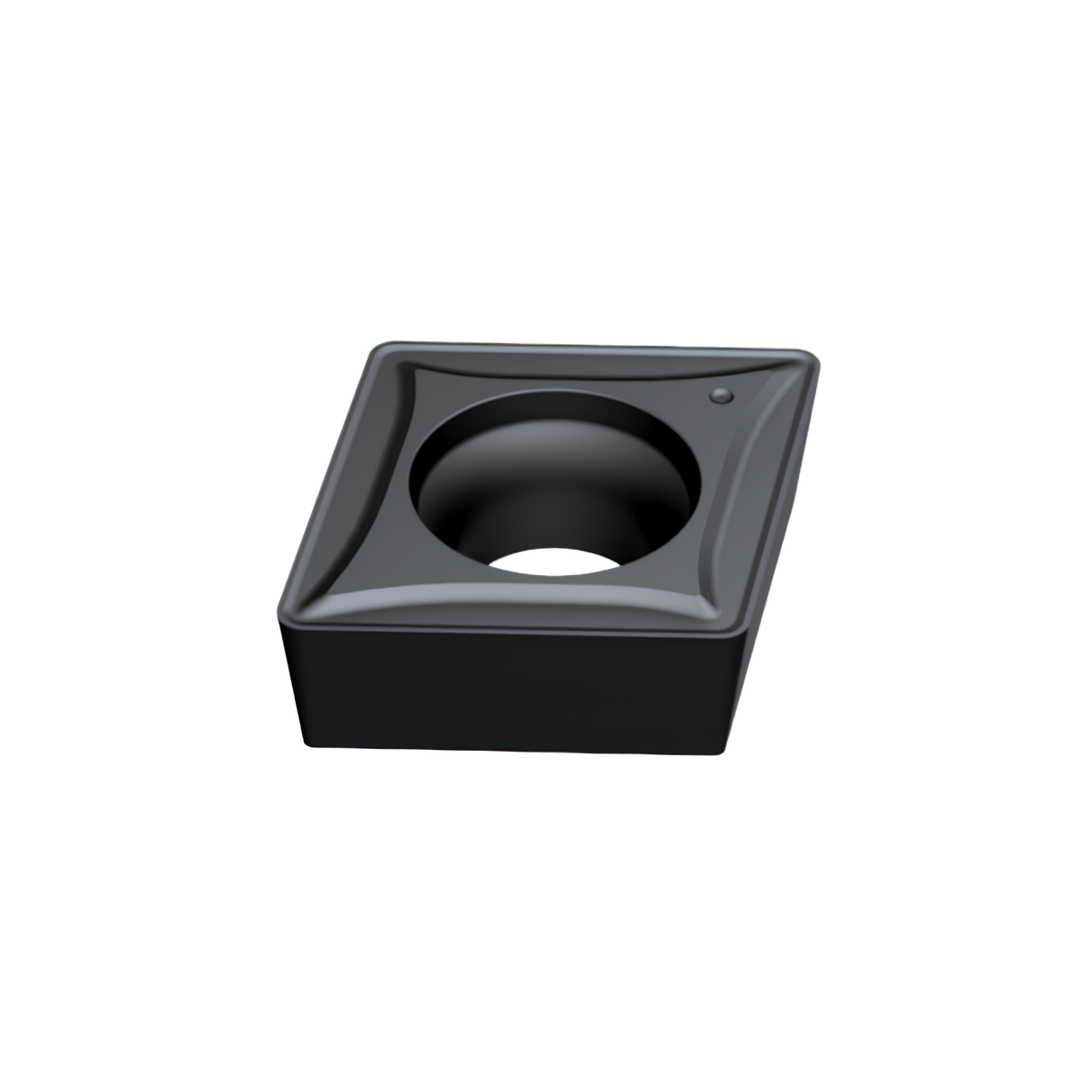

CCMT 060208 HPZ 252 Carbide Turning Insert for Steel & Stainless Steel

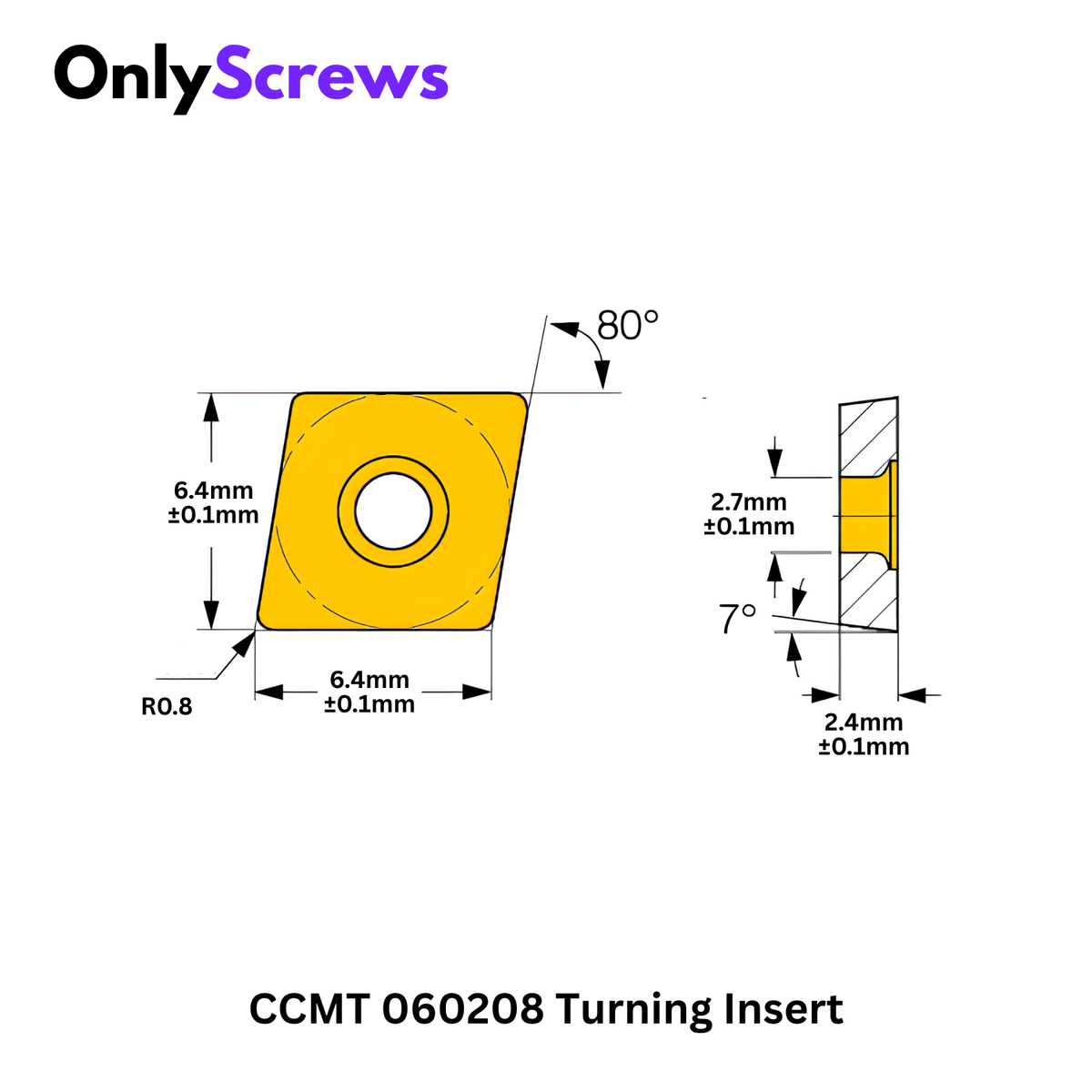

Insert Shape: C – 80° Rhombic / Diamond
Relief Angle: C – 7° Positive Clearance
Tolerance Class: M
Hole / Clamping Type: T – Countersunk Centre Hole
Cutting Edge Length: 6.4 mm
Insert Thickness: 2.4 mm
Corner Radius: 0.8 mm
Inscribed Circle Diameter: 6.35 mm
Mounting Hole Diameter: Approx. 2.7 mm
Cutting Edges: 2 Effective Cutting Edges
Application: CNC Turning
Workpiece Materials: Steel and Stainless Steel

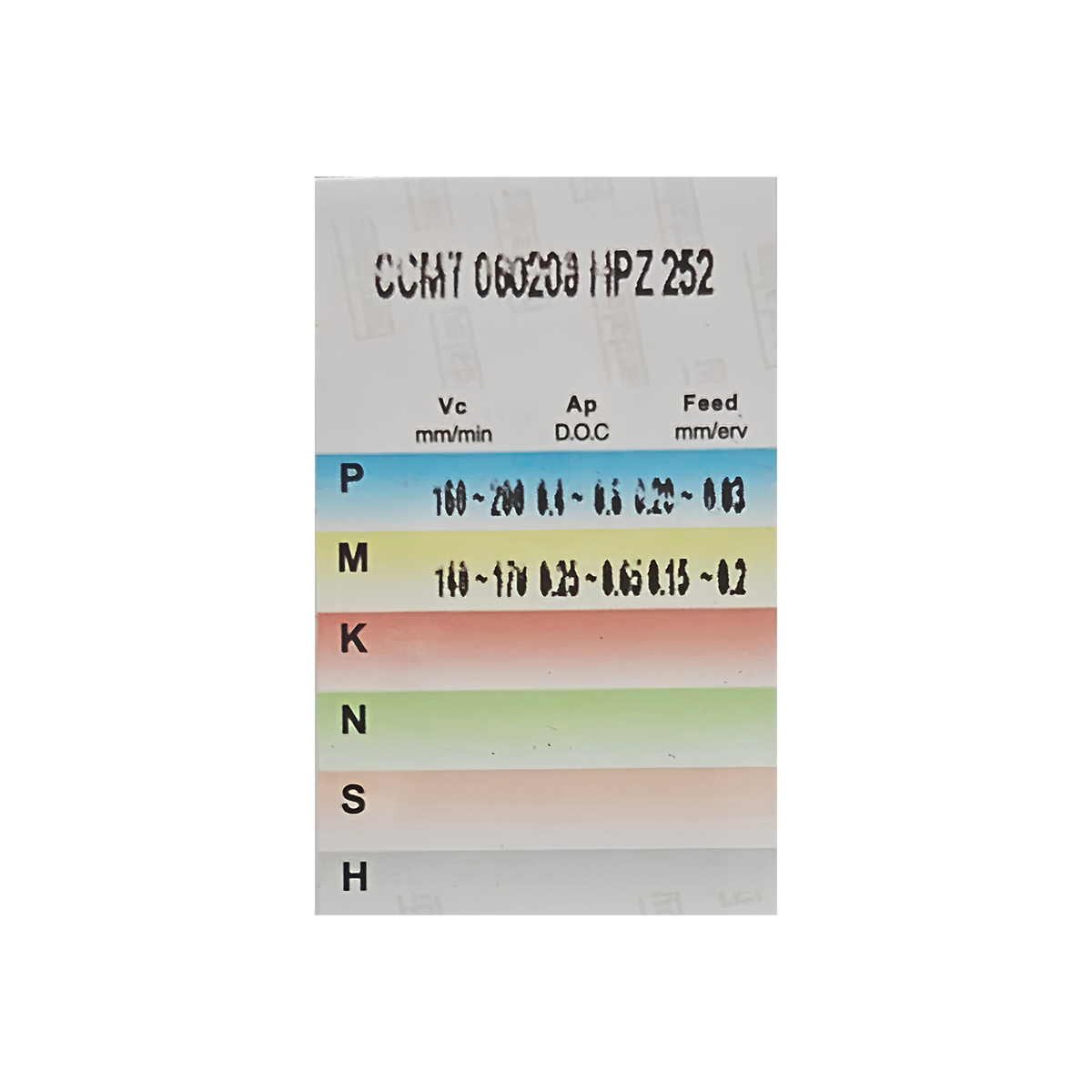

For Steel
Cutting Speed (Vc): 160–200 m/min
Depth of Cut (Ap): 0.4–0.8 mm
Feed Rate: 0.03–0.20 mm/rev
For Stainless Steel
Cutting Speed (Vc): 140–170 m/min
Depth of Cut (Ap): 0.25–0.65 mm
Feed Rate: 0.15–0.20 mm/rev

CCMT 060208 HPZ 252 carbide turning insert is a positive, indexable CNC turning insert designed for machining steel and stainless steel. Its 80° rhombic geometry and 7° positive clearance angle provide efficient cutting action with relatively low cutting resistance. The 0.8 mm nose radius provides a good balance between edge strength, surface finish and machining stability.

The indexable design allows the cutting edge to be replaced when worn, making the insert suitable for external turning, facing, profiling and general-purpose CNC lathe operations. CCMT 060208 inserts are commonly used for steel and stainless-steel turning, with the appropriate grade and cutting conditions.

Applications

• CNC external turning
• Facing operations
• Profile and contour turning
• Shoulder turning
• General shaft machining
• Steel machining
• Stainless steel machining
• Light to medium turning operations
• CNC lathes and compatible CCMT tool holders
