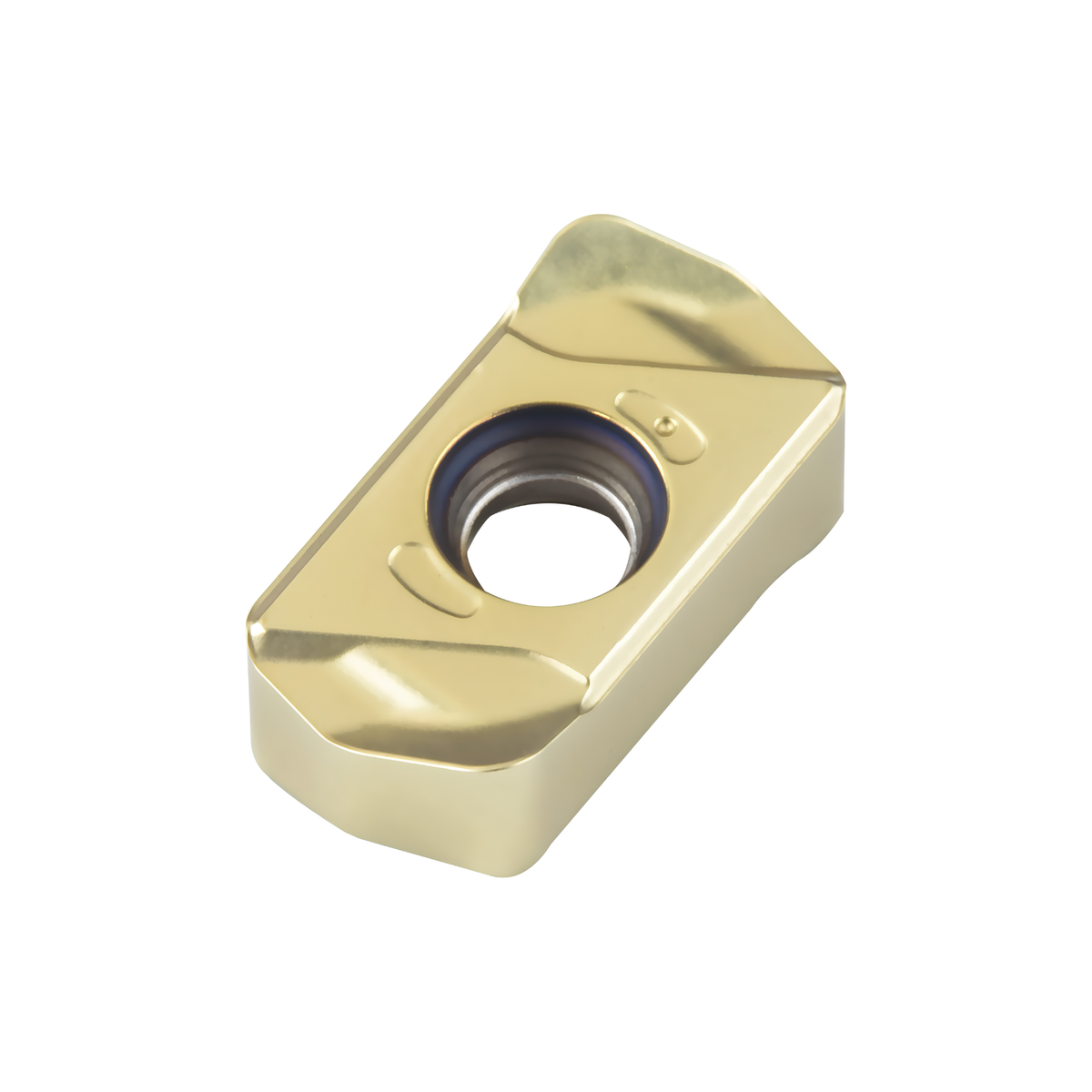

LNMU 0303 AS M30 Carbide Milling Insert for Steel and Stainless Steel

Insert Shape: L – Rectangular / High-Feed Geometry
Relief Configuration: N – 0° Clearance, Double-Sided
Tolerance Class: M
Clamping Configuration: U

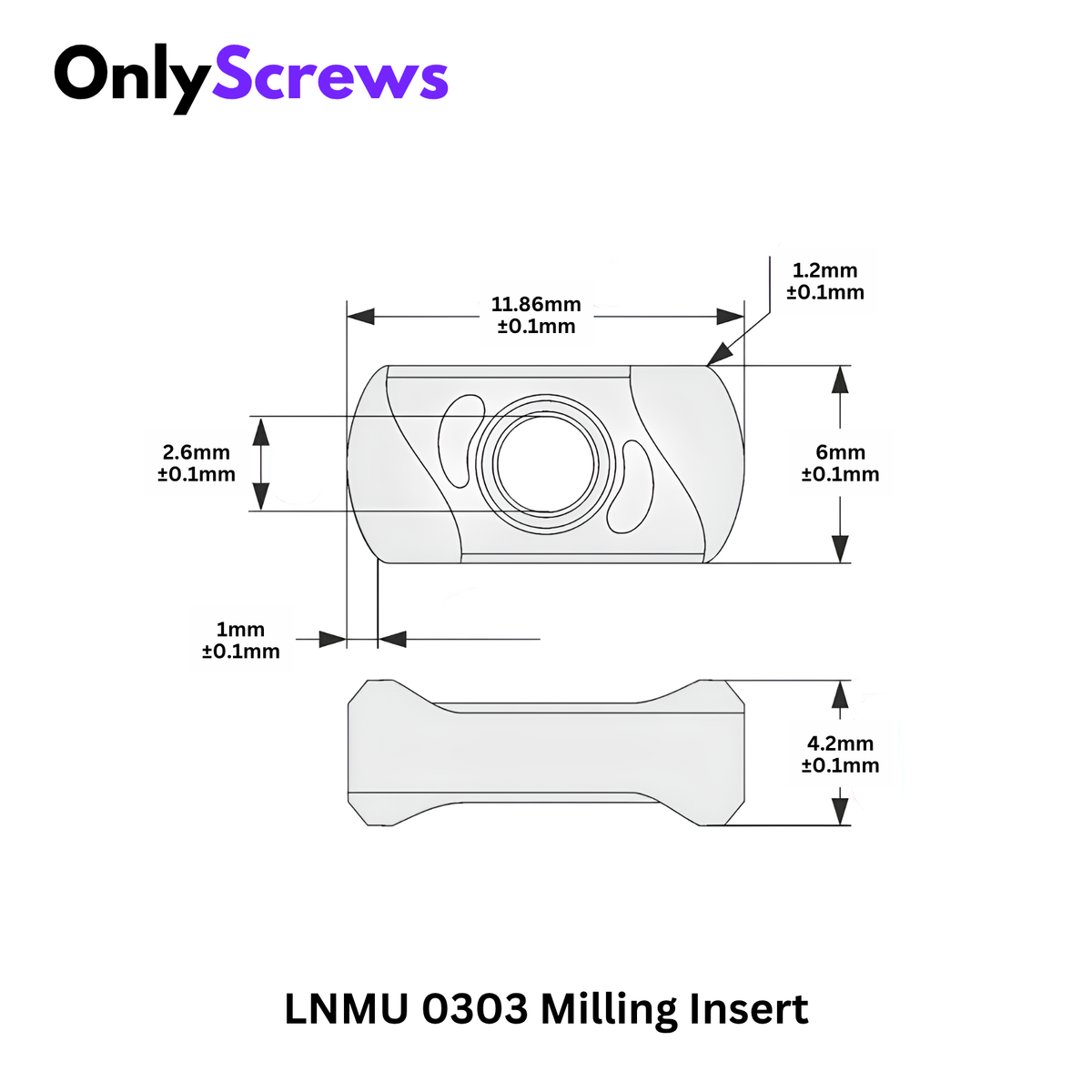

Insert Length: 11.86 mm
Insert thickness: 4.2mm
Corner Radius: 1.2 mm
Application: High-Feed Milling
Tool Type: Compatible High-Feed End Mills / Face Mills
Typical Materials: Steel & Stainless Steel

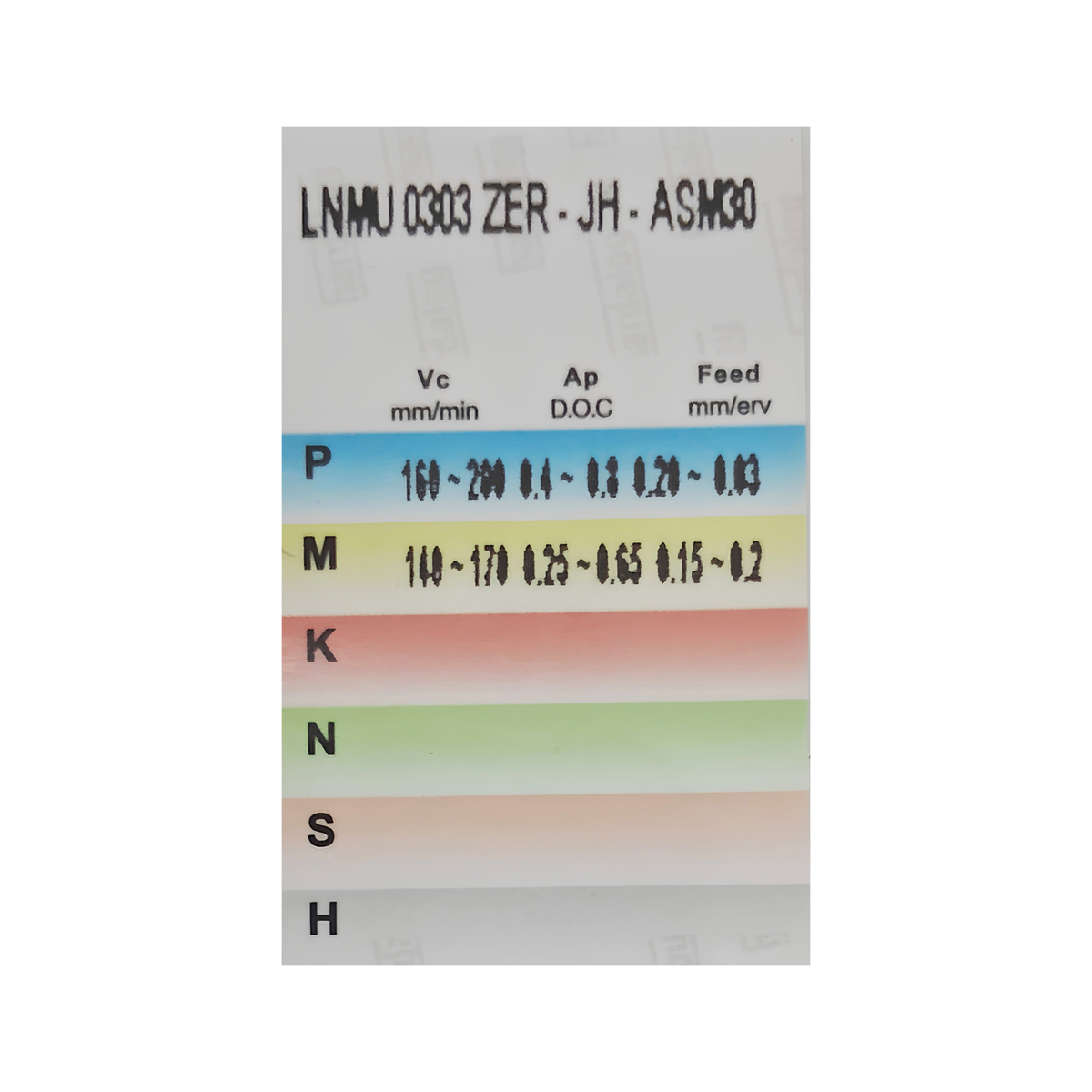

For Steel
Cutting Speed (Vc): 160–200 m/min
Depth of Cut (Ap): 0.4–0.8 mm
Feed Rate: 0.03–0.20 mm/rev
For Stainless Steel
Cutting Speed (Vc): 140–170 m/min
Depth of Cut (Ap): 0.25–0.65 mm
Feed Rate: 0.15–0.20 mm/rev

LNMU 0303 AS M30 carbide milling insert is a double-sided high-feed milling insert designed for compatible high-feed milling cutters. Its four usable cutting edges provide economical indexing and help reduce tooling cost per cutting edge. The high-feed geometry is designed to support high material-removal rates while maintaining stable cutting performance.

The LNMU 0303 platform is commonly used with compatible high-feed end mills and face mills, including cutter systems using LNMU 0303 inserts.

Applications

• High-feed CNC milling
• Face milling
• Shallow high-feed roughing
• Profile and contour milling
• Steel machining
• Stainless steel machining
• Cast iron machining
• General production machining
• CNC machining centres
