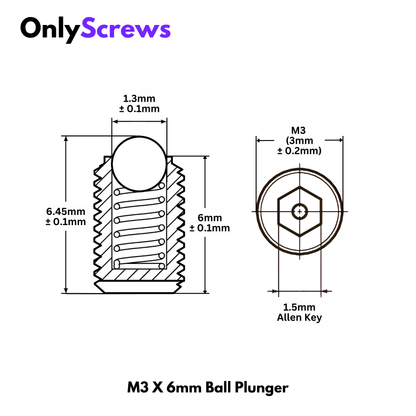

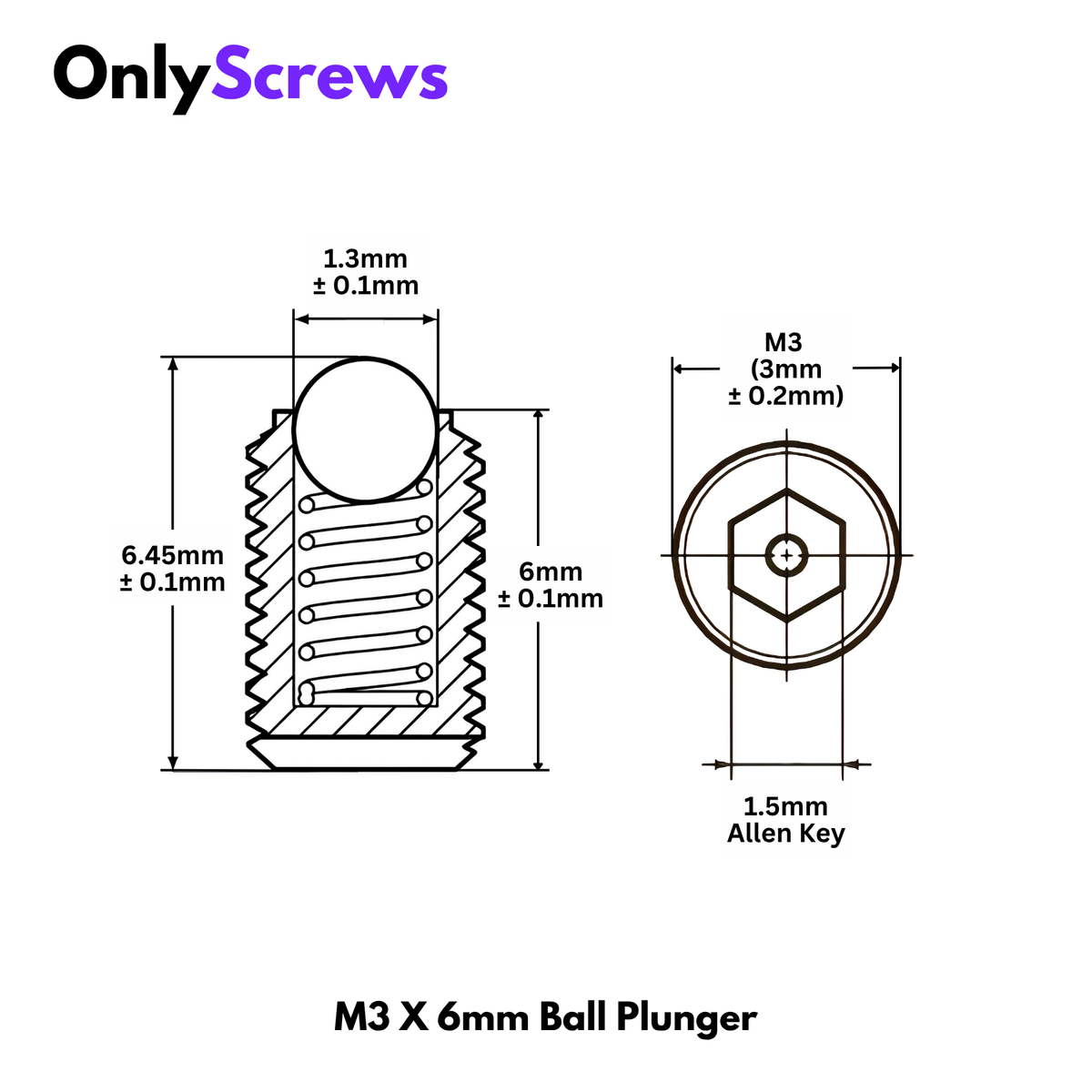

M3 X 6mm Ball Plunger Grub Screw Stainless Steel 304 (SS304) Spring Loaded Ball Detent

Thread Diameter: 3mm
Length: 6mm
Thread Pitch: 0.5mm
Body Material: Stainless Steel 304 (SS304)
Mechanism: Spring-Loaded Ball Plunger
Thread Type: Metric Coarse
Function: Positioning, Indexing and Detent Locking

Allen Key used: 1.5mm

Spring-loaded ball plunger grub screw featuring a retractable ball tip that provides controlled contact pressure for positioning, indexing and temporary locking. The internal spring allows the ball to compress under load and return to its original position, enabling repeatable engagement without permanent fastening. Its stainless steel 304 body provides corrosion resistance and durability for precision mechanical assemblies.

Applications

• Positioning and indexing mechanisms
• Jigs and fixtures
• CNC machinery and automation
• Sliding and adjustable components
• Detent locking and alignment systems
