M5 Rivet/Insert Nut SS304 (Dia. 5mm)
M5 Rivet/Insert Nut SS304 (Dia. 5mm)
GST calculated at checkout
For bulk/B2B orders mail us at support@onlyscrews.in
Couldn't load pickup availability

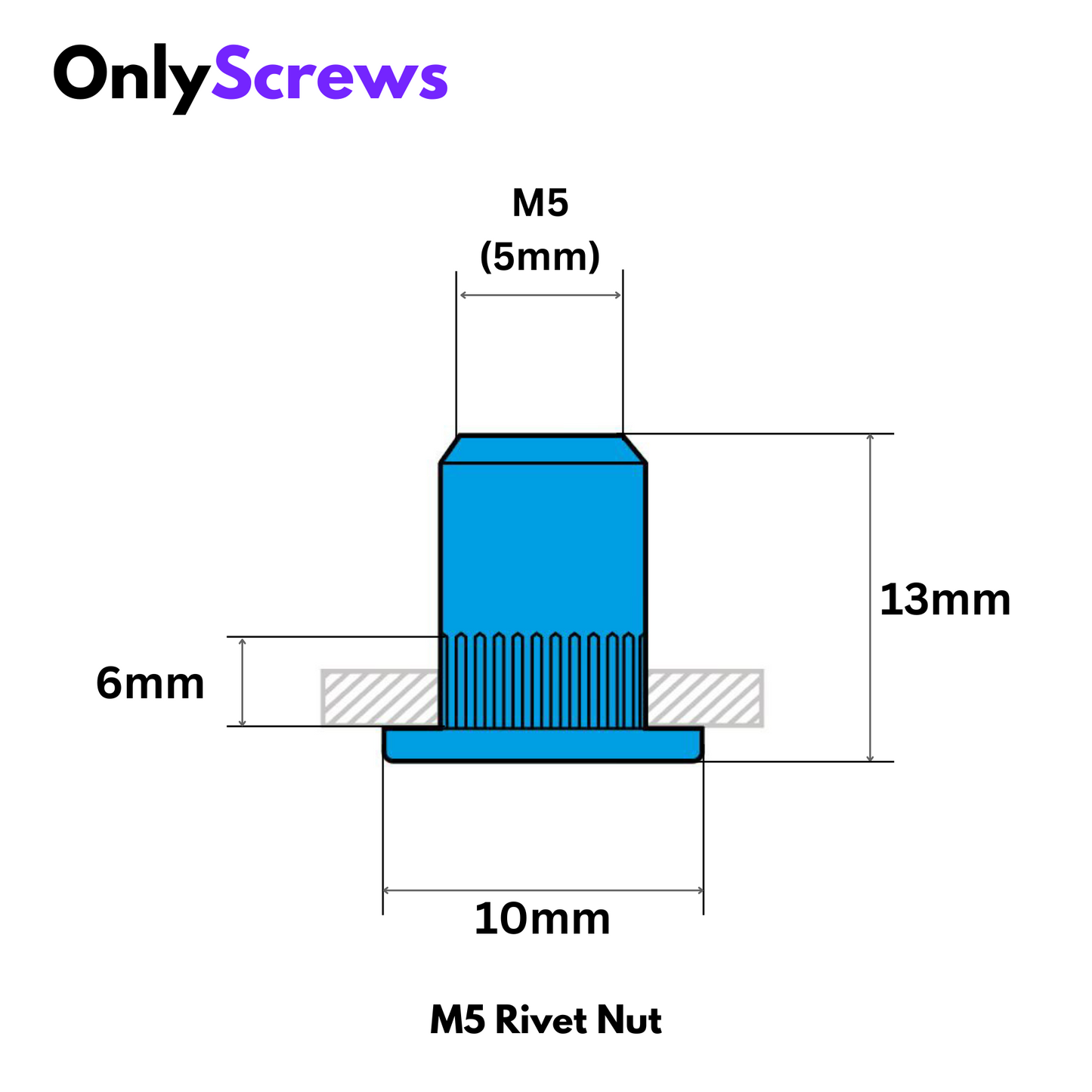

ID: 5mm
Material: SS304
Nut Type: Rivet/Insert

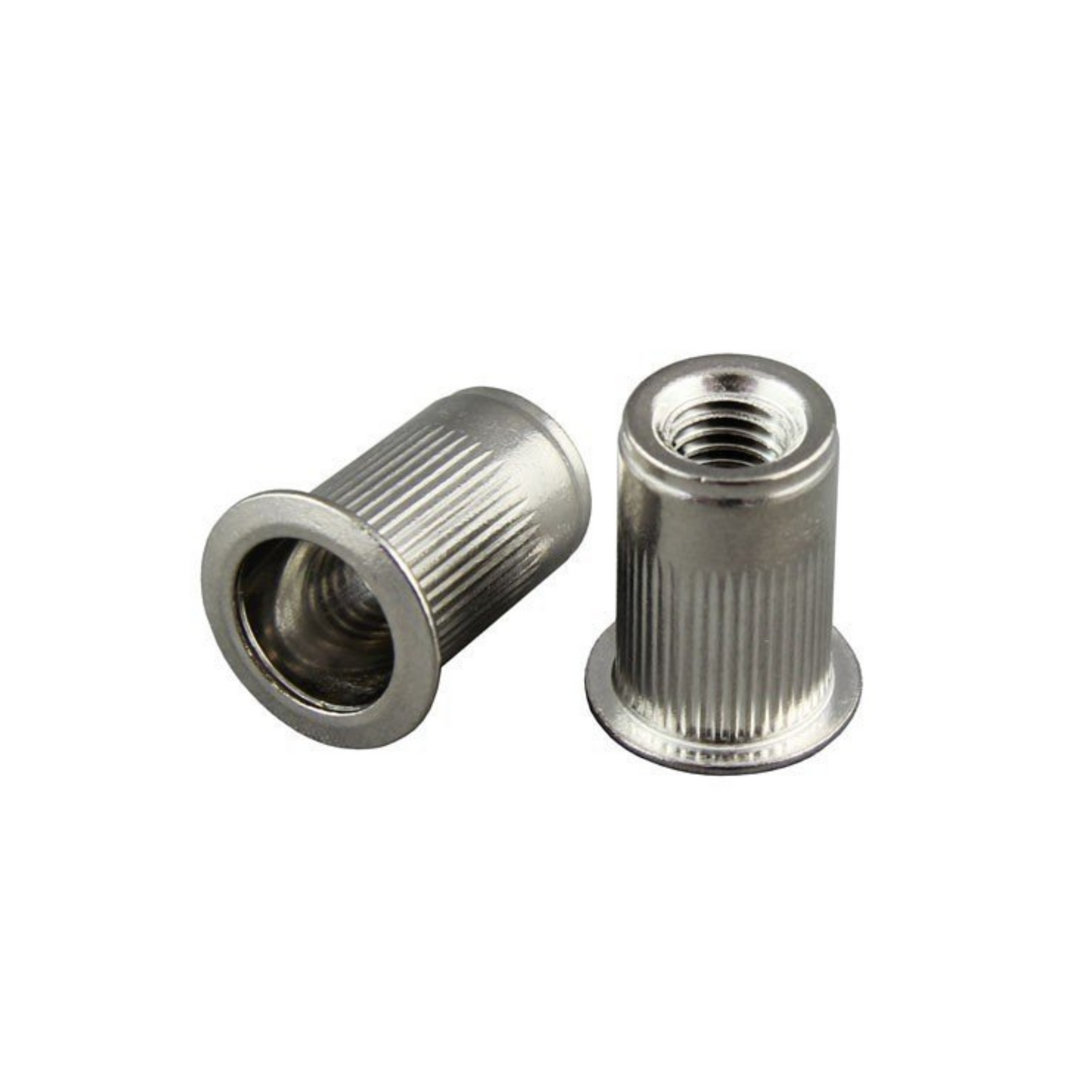

The M5 Rivet Nut is 5mm in internal diameter and crafted from high-quality SS304 stainless steel, offering superior durability, corrosion resistance, and reliability in demanding environments.
A rivet nut gets its name from its dual functionality. Like a rivet, it is designed to be installed from one side of the material, and like a nut, it creates a threaded insert for screws and bolts. The "rivet" action occurs when the rivet nut is compressed, forming a secure connection within the material, while the nut portion allows bolts to be threaded into it, offering a robust fastening point. This design makes it ideal for thin-walled materials where access to both sides is limited.
Applications:
- Aerospace and aviation: For installing threaded connections in thin aircraft panels or body structures.
- Automotive and transportation: Secures components like body panels, dashboards, and interior parts.
- Electronics: Provides threaded fastening points in enclosures, casings, and control boxes.
- Drones and robotics: Attaches equipment or brackets to thin structural parts made of carbon fiber or aluminum.
- Metal fabrication: Allows easy fastening in sheet metal assemblies without needing to weld or access the opposite side.
The Rivet nuts are also known as Insert Nuts.
