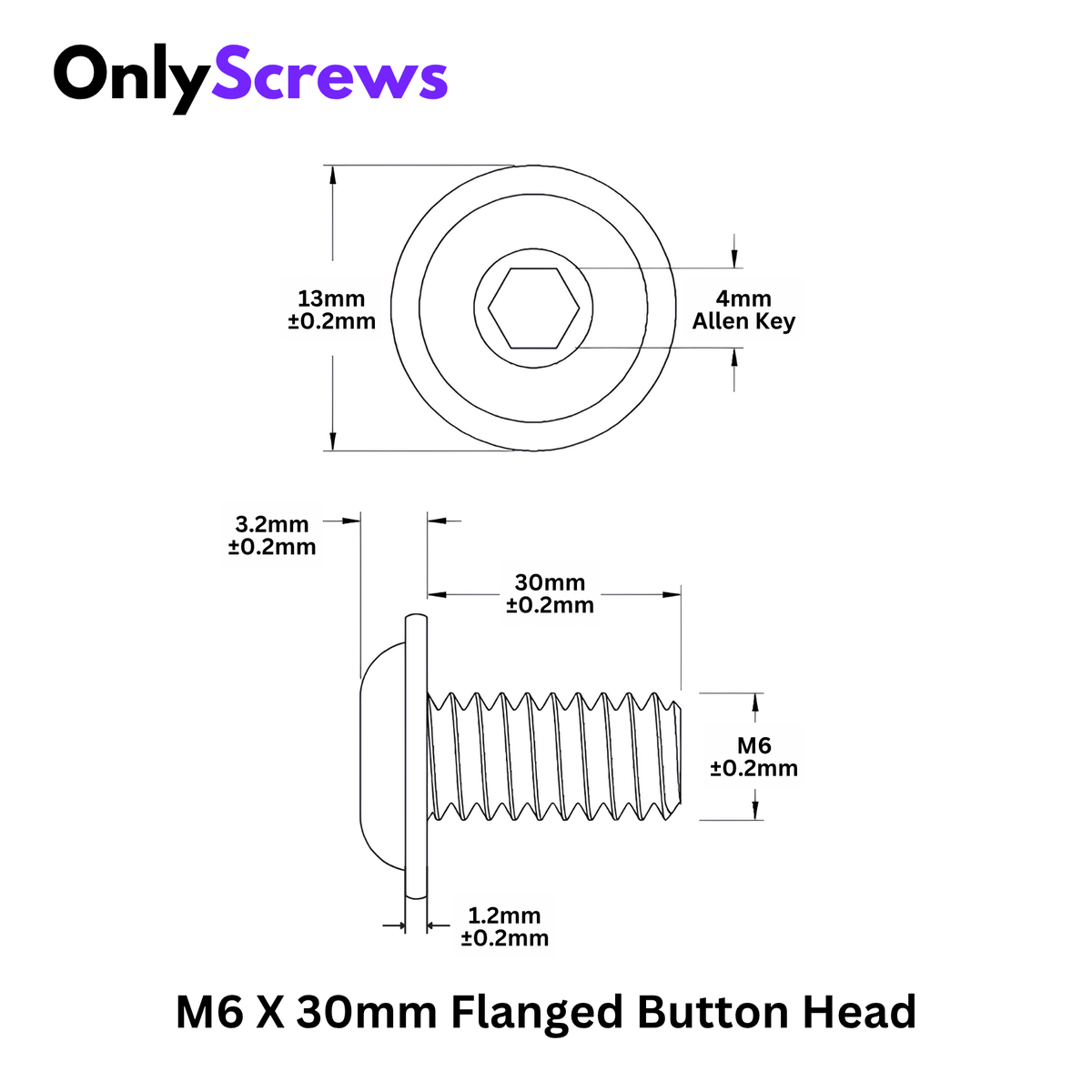

M6 X 30mm Hex (Allen) Flanged Button Head High Tensile(10.9) Black Oxide Screw (Dia. 6mm, Length 30mm)

Thread Diameter: 6mm
Length: 30mm
Thread Pitch: 1mm (Metric Coarse)
Head Type: Flanged Button Head
Material: Carbon Steel(High Tensile)
Grade: 10.9
Finish: Black Oxide
Thread Direction: Right Hand (RH)

Allen Key size used: 4mm

High-tensile alloy steel socket screw featuring a low-profile, dome-shaped button head with an integrated flange that distributes clamping force over a wider contact area. The flange reduces surface pressure and can eliminate the need for a separate flat washer in suitable assemblies.

The internal hex drive allows controlled tightening with an Allen key, while the Grade 10.9 steel construction provides high strength for mechanically demanding applications. The black oxide finish offers a uniform dark appearance and limited corrosion protection.

Applications

• Automotive and motorcycle assemblies
• Machinery and industrial equipment
• Robotics and automation
• CNC machines and 3D printers
• Metal brackets and structural fixtures
• Mechanical and engineering assemblies
