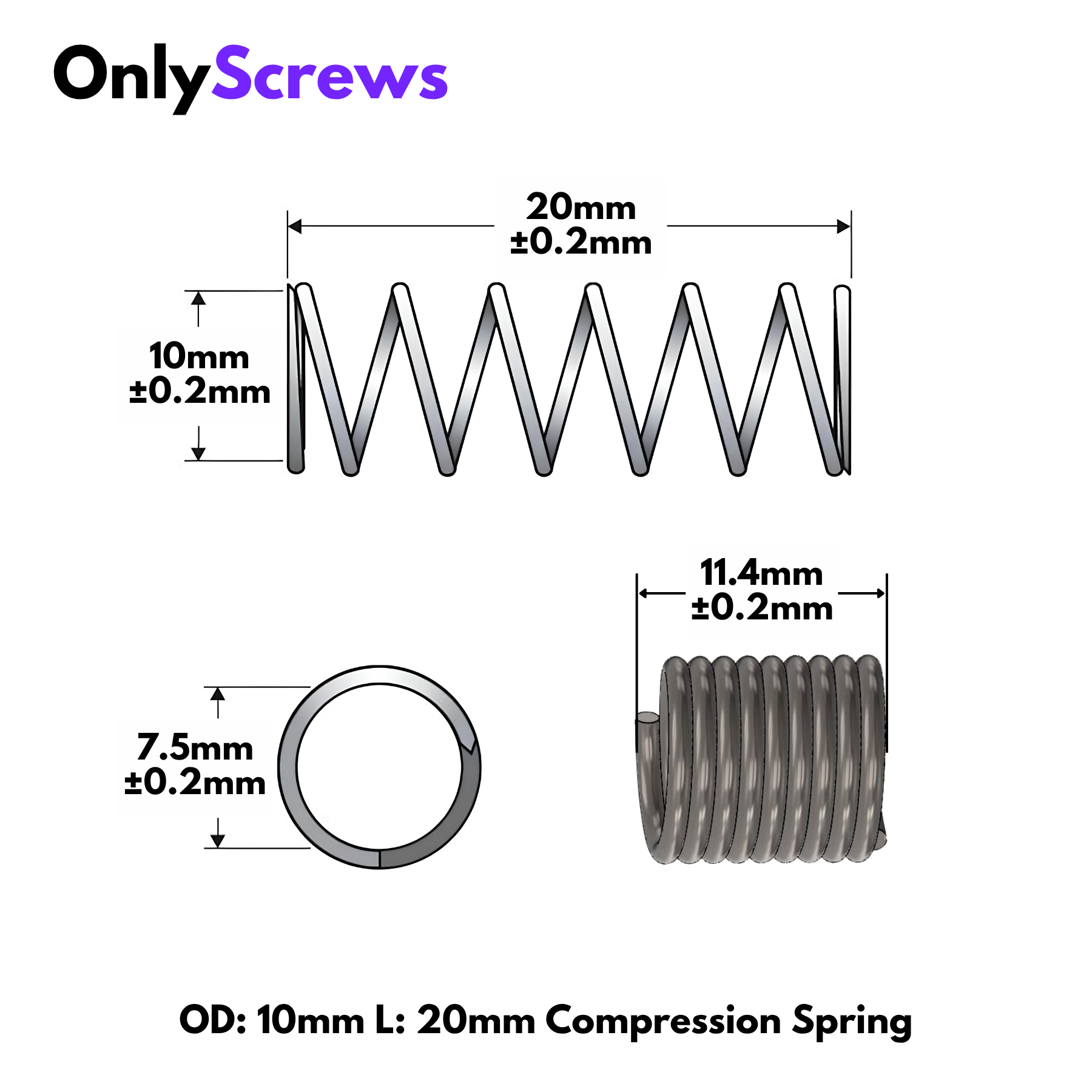

OD: 10mm, Free Length: 20mm, Wire Dia: 1.2mm Compression Spring Stainless Steel 304

Outside Dia : 10 mm
Inner Dia: 7.5 mm
Free Length : 20 mm
Rate : 4.022 N/mm
Solid Length : 11.4 mm
Wire Diameter : 1.2 mm
Total Coils: 8
Material: Stainless Steel 304

A compression spring is designed to resist axial compressive loads, stores mechanical energy and returns to its original length upon load removal. The SS304 material provides corrosion resistance and good fatigue characteristics, making it suitable for both indoor and mildly corrosive environments.

The spring geometry allows use in compact assemblies requiring controlled force, vibration damping, preload, or return action.

Applications:

• Push-button and switch mechanisms
• Battery contacts and holders
• Small mechanical assemblies
• Electronic devices and instruments
• Precision equipment and fixtures
• Return mechanisms and preload applications
• Hobby, robotics, and prototyping projects
• Automotive and industrial components requiring corrosion resistance
