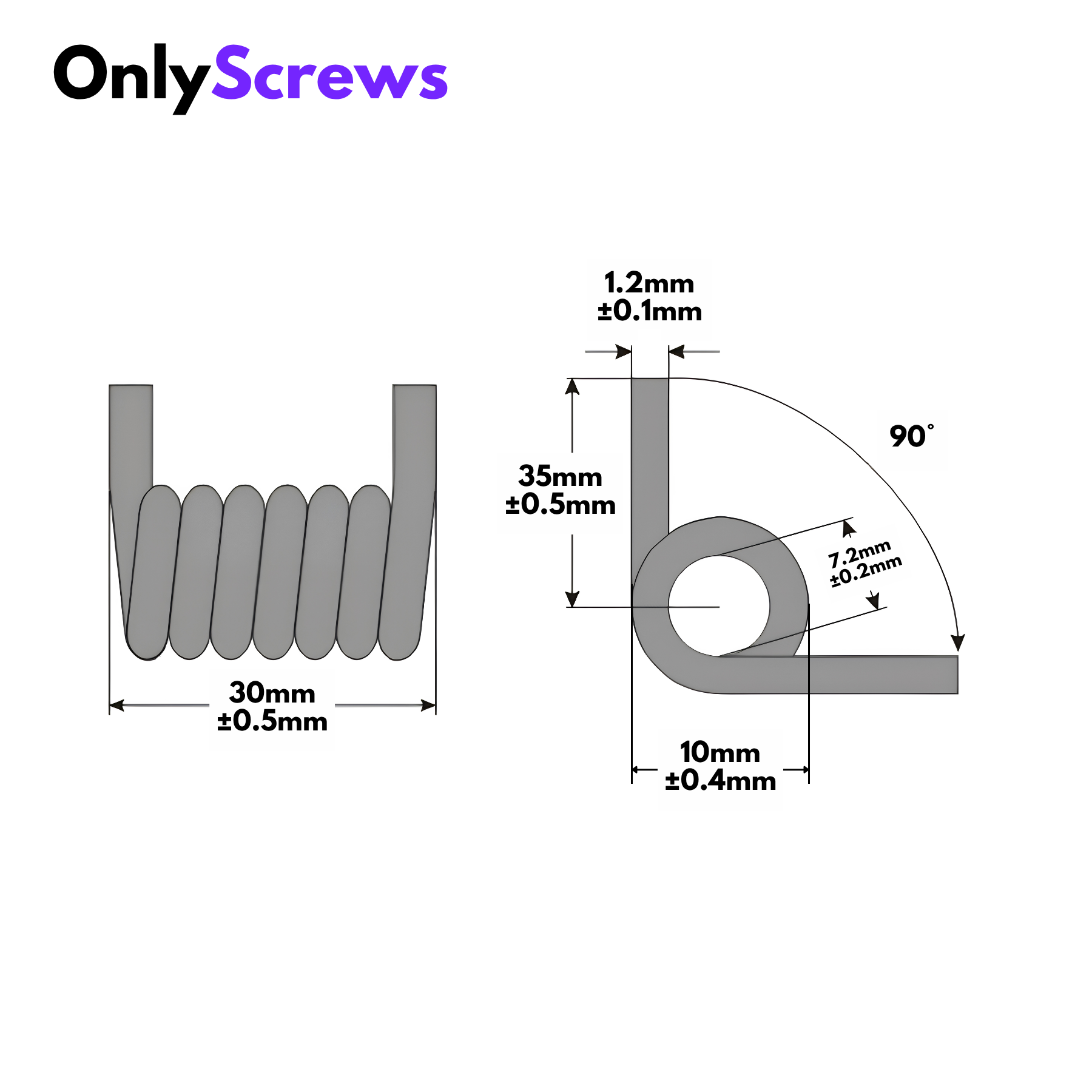

OD: 10mm ID: 7.2mm L: 30mm Deflection Angle: 90 Torsion Spring Stainless Steel 304

Outer Diameter (OD): 10 mm
Inner Diameter (ID): 7.2 mm
Body Length: 30 mm
Wire Diameter: 1.2 mm
Deflection Angle: 90°
Leg Length: 35 mm
Material: Stainless Steel 304

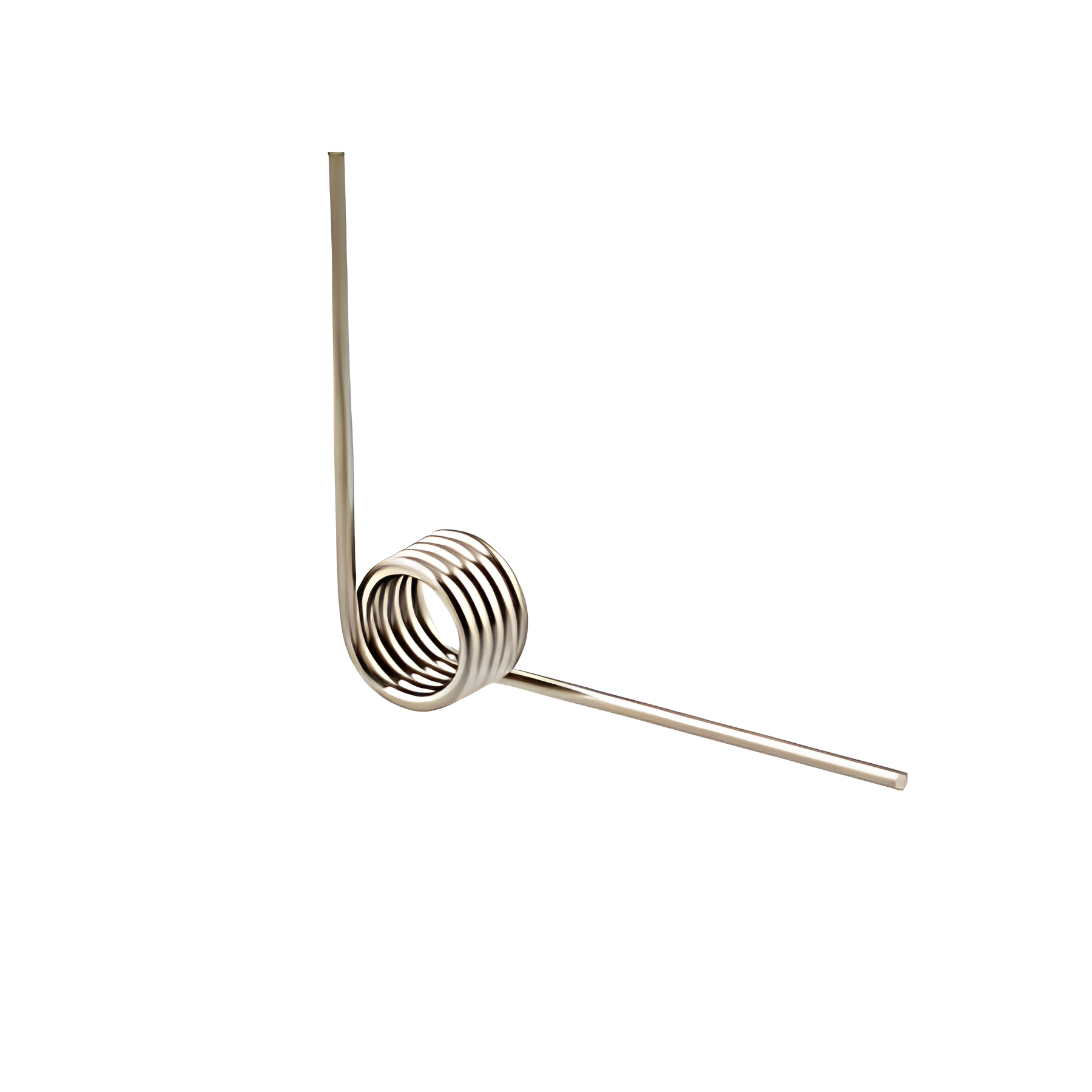

The 10 mm Torsion Spring is manufactured from Stainless Steel 304 for excellent corrosion resistance, durability, and reliable spring performance. Designed to resist rotational forces and return components to their original position, this spring provides a 90° deflection angle with consistent torsional force. The 1.2 mm wire diameter, 10 mm OD, 7.2 mm ID, and 35 mm leg length make it suitable for compact mechanical assemblies requiring controlled rotational movement, return action, or preload.

Applications

• Hinges and latch mechanisms
• Switches and levers
• Return mechanisms
• Electrical and electronic assemblies
• Automotive components
• Small mechanical assemblies
• Machinery and equipment
• DIY, robotics, and prototyping projects
