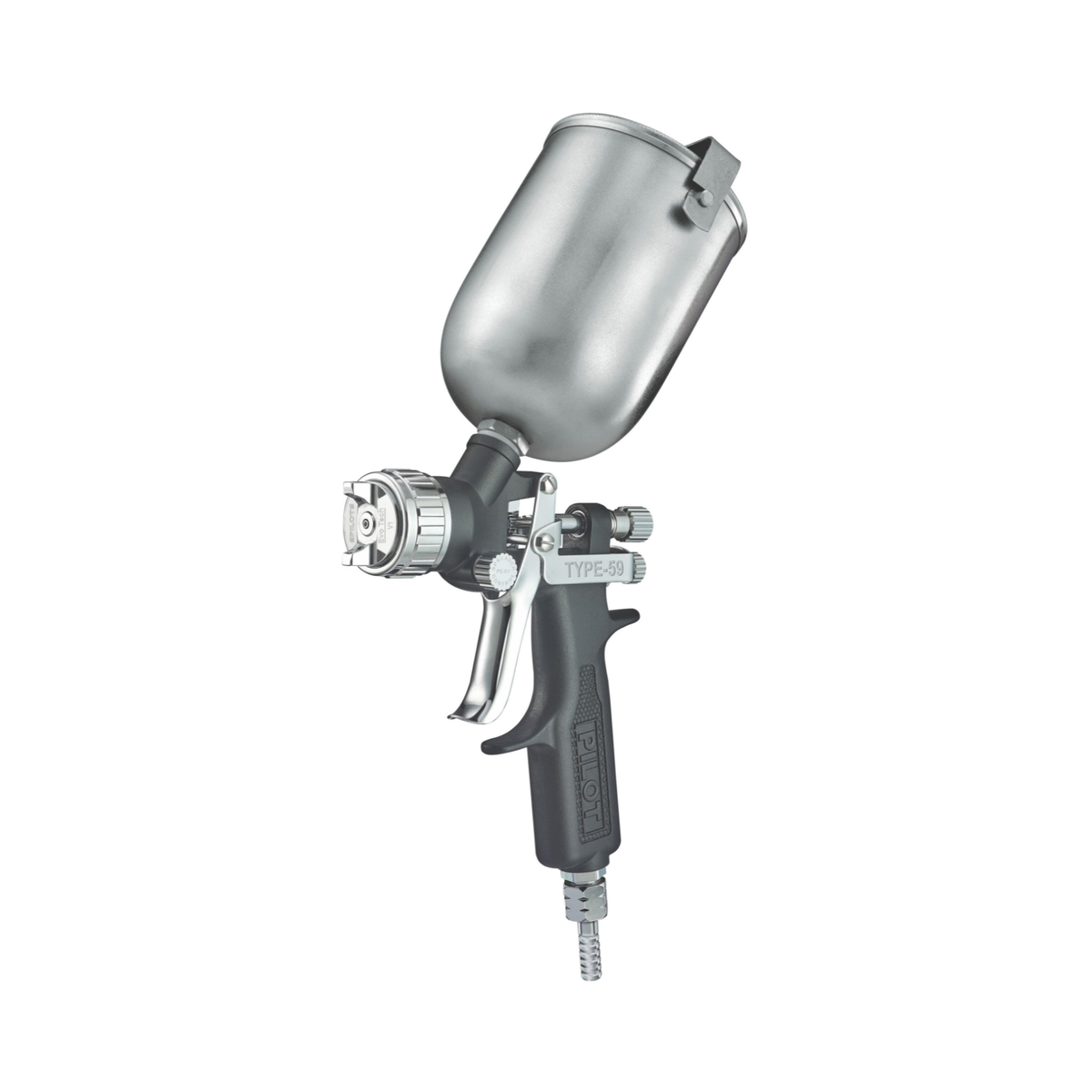

Pilot Type 59 Air Assisted Paint Spray Gun with 570ml Metal Cup

Brand: Pilot Spray Gun
Model: Type 59
Type: Gravity Feed Spray Gun
Cup Capacity: 0.57 L (570 ml)
Fluid Nozzle: 1.6 mm
Required Air Pressure: 40–60 PSI (2.8–4.2 kg/cm²)
Air Consumption: 225–300 L/min (8–10 CFM)
Spray Pattern: Round to Fan
Recommended Spray Distance: Approx. 230 mm (9 inch)
Minimum Air Compressor: 1–2 HP

Box Contents

1 × Pilot Type 59 Spray Gun
1 × 0.57 L Gravity Feed Cup
1 × Hose Coupling
1 × Air Control

Product Description

Lightweight gravity-feed spray gun for controlled paint application on medium and large surfaces. Suitable for automotive, machinery and general industrial painting.

Applications

• Automotive painting
• Machinery and equipment
• Metal fabrication
• Furniture and industrial surfaces
