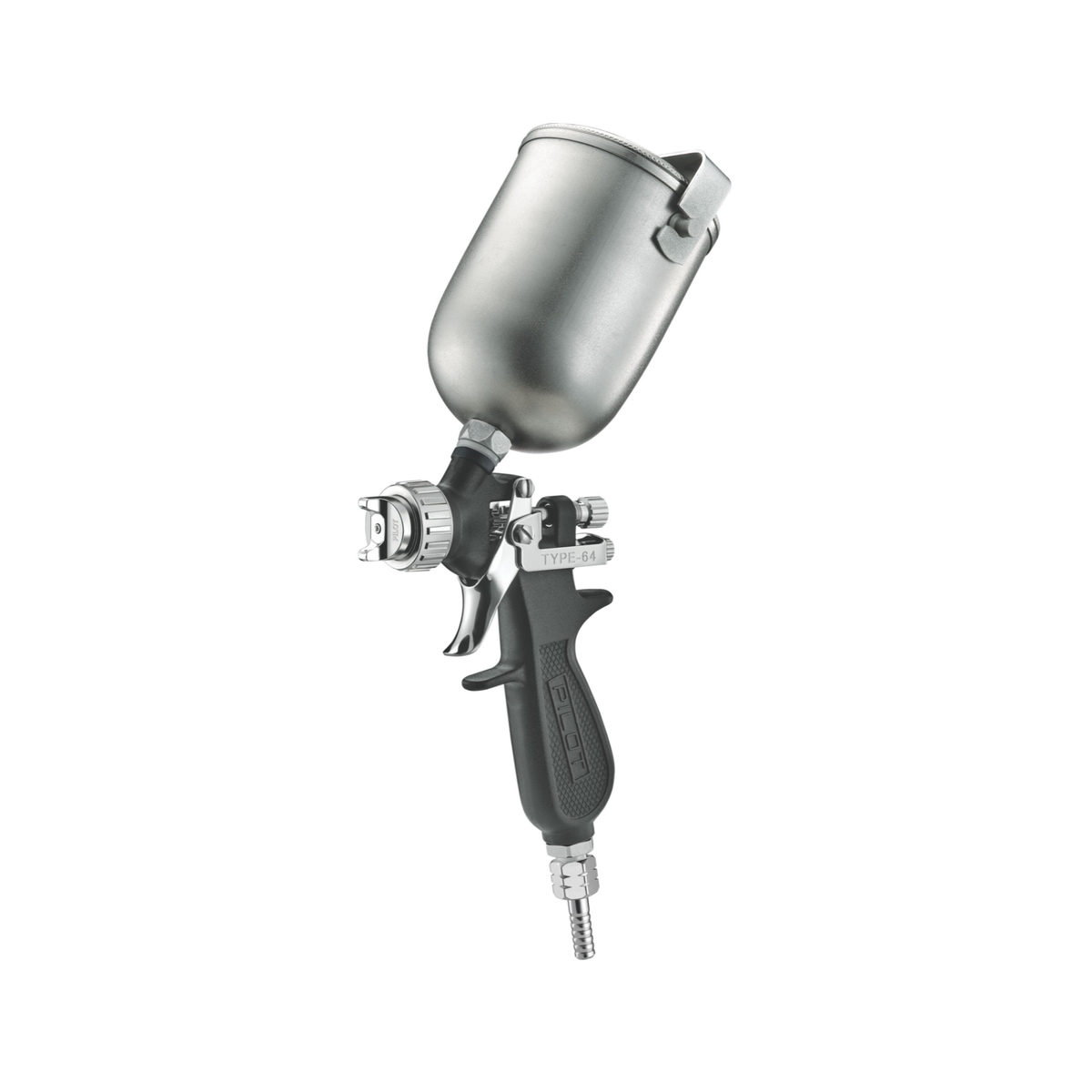

Pilot Type 64 Air Assisted Paint Spray Gun with 340ml Metal Cup

Brand: Pilot Spray Gun
Model: Type 64
Type: Gravity Feed Spray Gun
Cup Capacity: 0.34 L (340 ml)
Fluid Nozzle: 1.6 mm
Required Air Pressure: 2.1–2.8 kg/cm² (30–40 PSI)
Air Consumption: 115–170 L/min (4–6 CFM)
Material Output: 300 cc/min
Maximum Spray Pattern Width: 180 mm
Recommended Spray Distance: 228.6 mm (9 inch)
Minimum Air Compressor: 1 HP
Spray Pattern: Round to Fan

Box Contents

1 × Pilot Type 64S Spray Gun
1 × 340 ml Gravity Feed Cup
1 × Hose Coupling
1 × Air Control

Lightweight gravity-feed spray gun with a 1.6 mm nozzle and adjustable round-to-fan spray pattern for smooth, controlled paint application.

Applications

• Automotive painting
• Furniture
• Electrical equipment
• Sports goods
• Handicrafts
