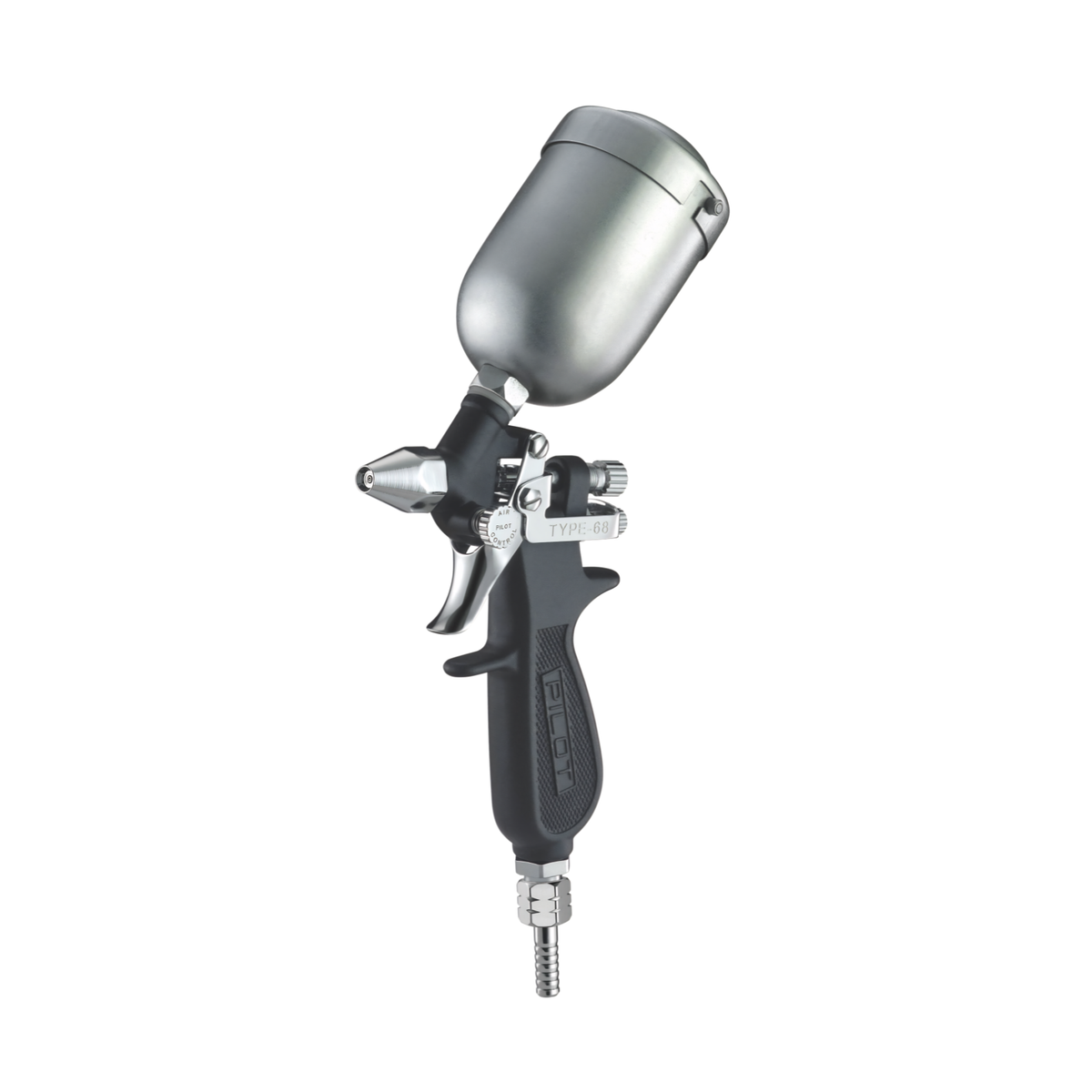

Pilot Type 68 Air Assisted Paint Spray Gun with 140ml Metal Cup

Brand: Pilot Spray Gun
Model: Type 68
Type: Gravity Feed Spray Gun
Cup Capacity: 140 ml
Fluid Nozzle: 0.8 mm
Required Air Pressure: 2–3 kg/cm²
Air Consumption: 60–70 L/min (approx. 2 CFM)
Material Output: 100 cc/min
Maximum Spray Pattern Width: 100 mm
Minimum Air Compressor: 1 HP
Spray Distance: Approx. 200 mm (8 inch)
Built-in Air Control: Yes

Box Contents

1 × Pilot Type 68 Spray Gun
1 × 140 ml Gravity Feed Cup
1 × Hose Coupling
1 × Air Control

Compact precision gravity-feed spray gun with a 0.8 mm nozzle and built-in air control for fine spraying, shading and blending.

Applications

• Handicrafts and artistry
• Pottery and statues
• Textile and fabric work
• Laboratory applications
