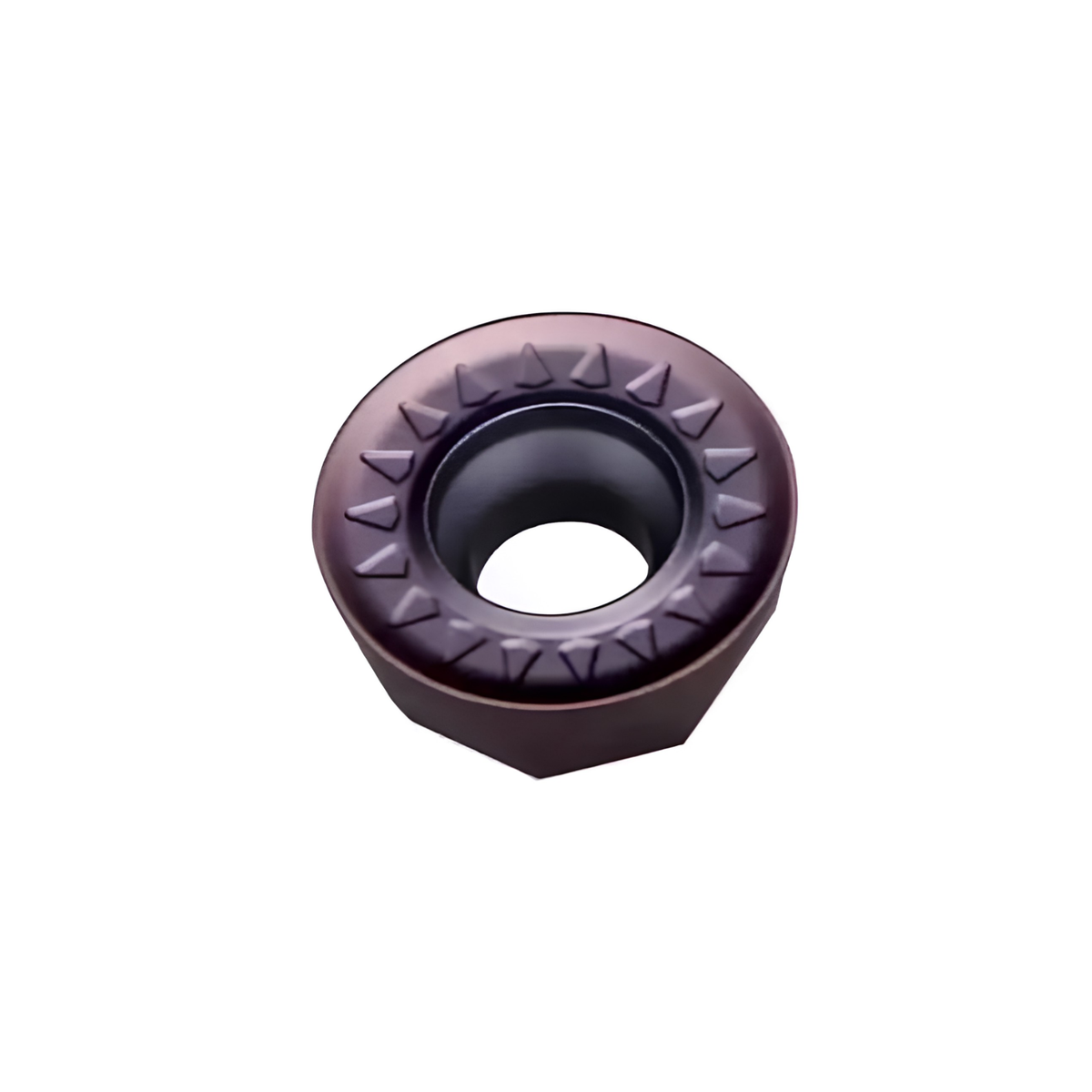

RPMT 1204 HM0 S300 Carbide Milling Insert for Steel, Stainless Steel & Carbon Steel

Insert Shape: R – Round
Insert Type: Positive Round Milling Insert
Relief Angle: 11° Positive Clearance

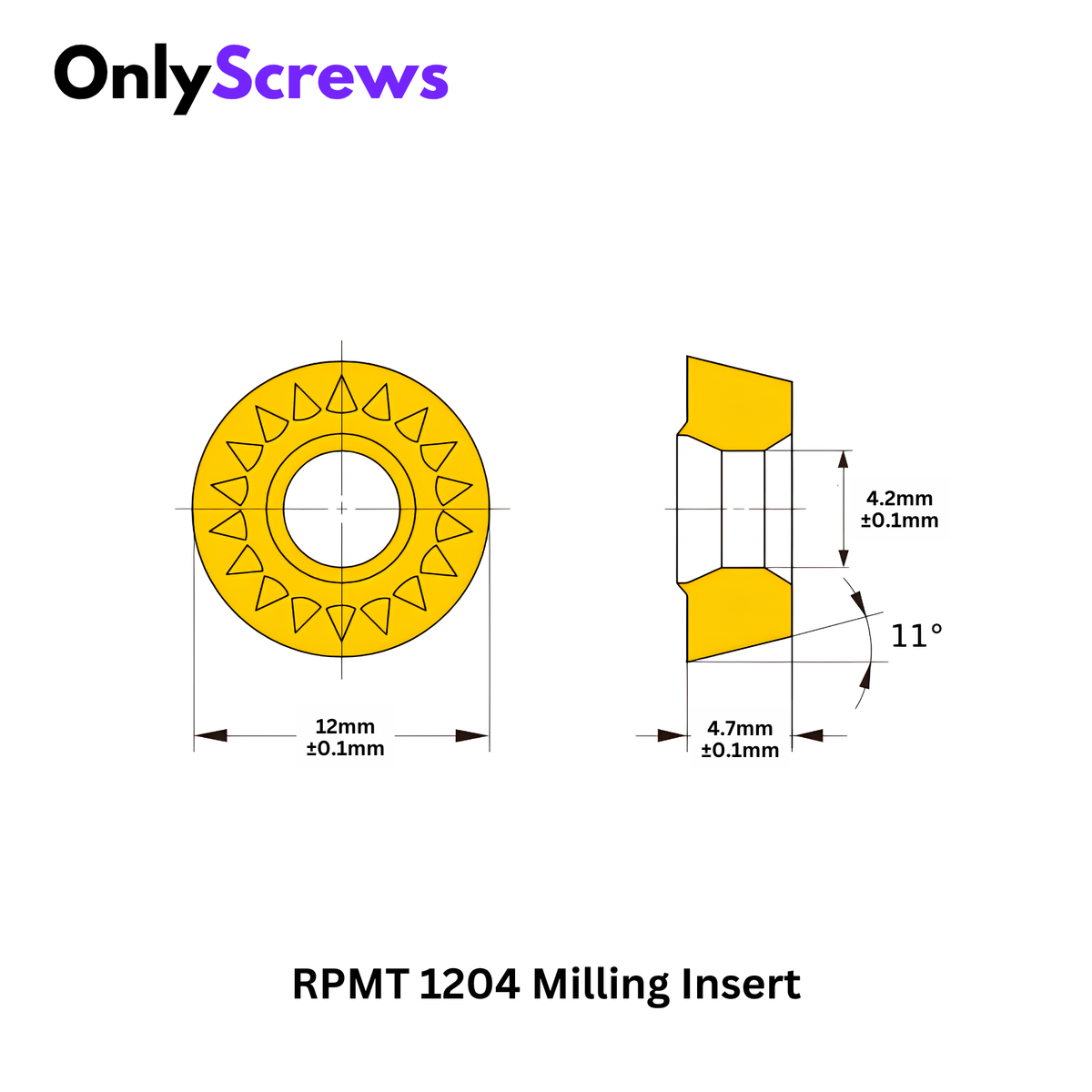

Insert Diameter / IC: 12 mm
Insert Thickness: 4.7 mm
Mounting Hole Diameter: 4.2 mm
Cutting Direction: Neutral
Application: Profile Milling, Face Milling & Roughing
Workpiece Materials: Steel, Stainless Steel & Carbon Steel
Tool Type: Compatible Round-Insert Milling Cutter

RPMT 1204 HM0 S300 carbide milling insert is a positive round indexable milling insert designed for profile milling, contouring and general-purpose material removal. Its rounded cutting edge distributes cutting forces over the curved edge, providing good edge strength and making the insert suitable for demanding milling operations.

The 12 mm round insert with 4.7 mm thickness is designed for compatible round-insert milling cutters. RPMT inserts are commonly used for profiling and roughing, with the geometry providing multiple usable cutting positions as the insert is indexed.

Applications

• CNC profile milling
• Face milling
• Contour milling
• Shoulder and step milling
• Roughing operations
• Steel machining
• Stainless steel machining
• Carbon steel machining
• General engineering and fabrication
• CNC machining centers
