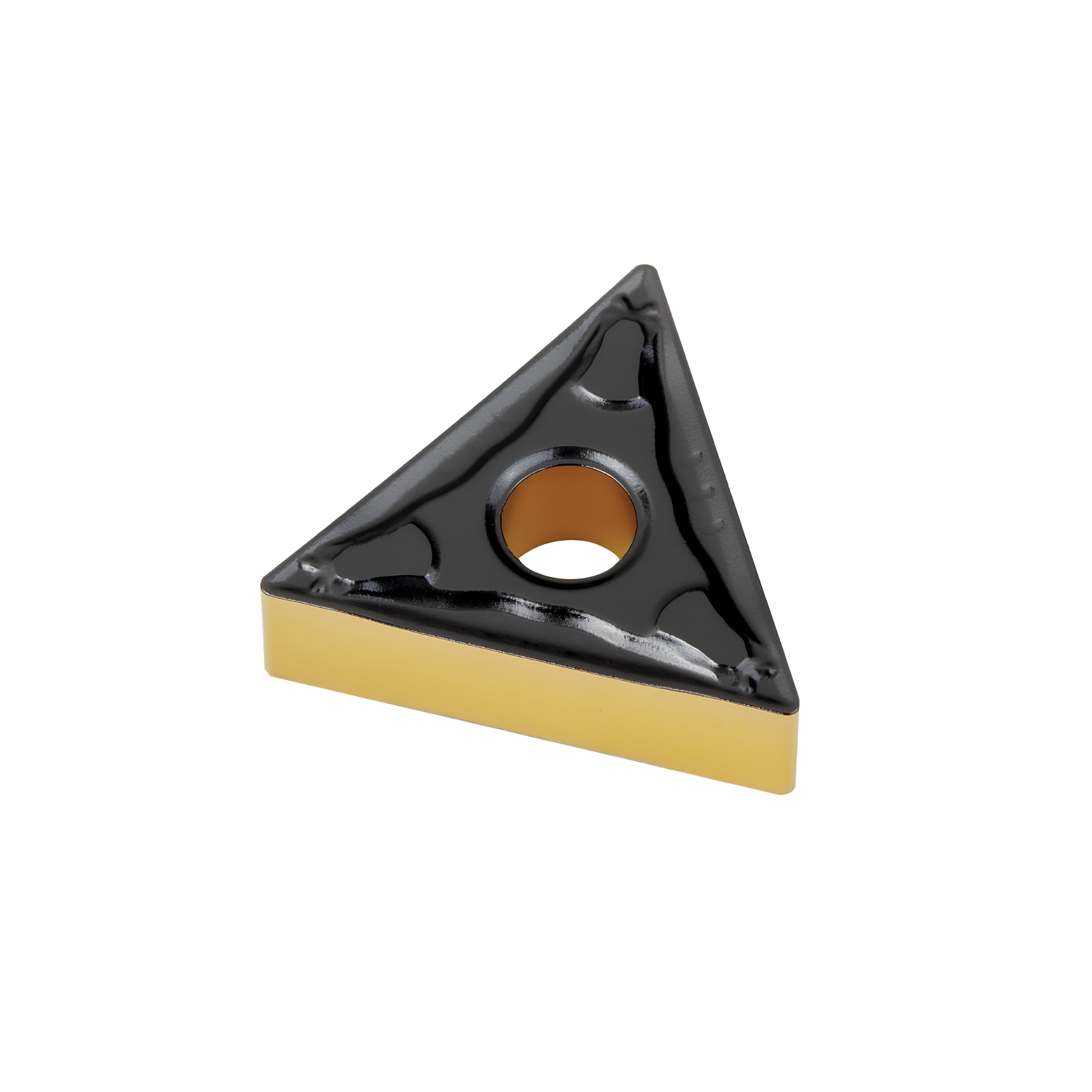

TNMG 160404 CQ HA 4225 Carbide Turning Insert for Steel

Insert Type: Negative Carbide Turning Insert
Material Application: Steel

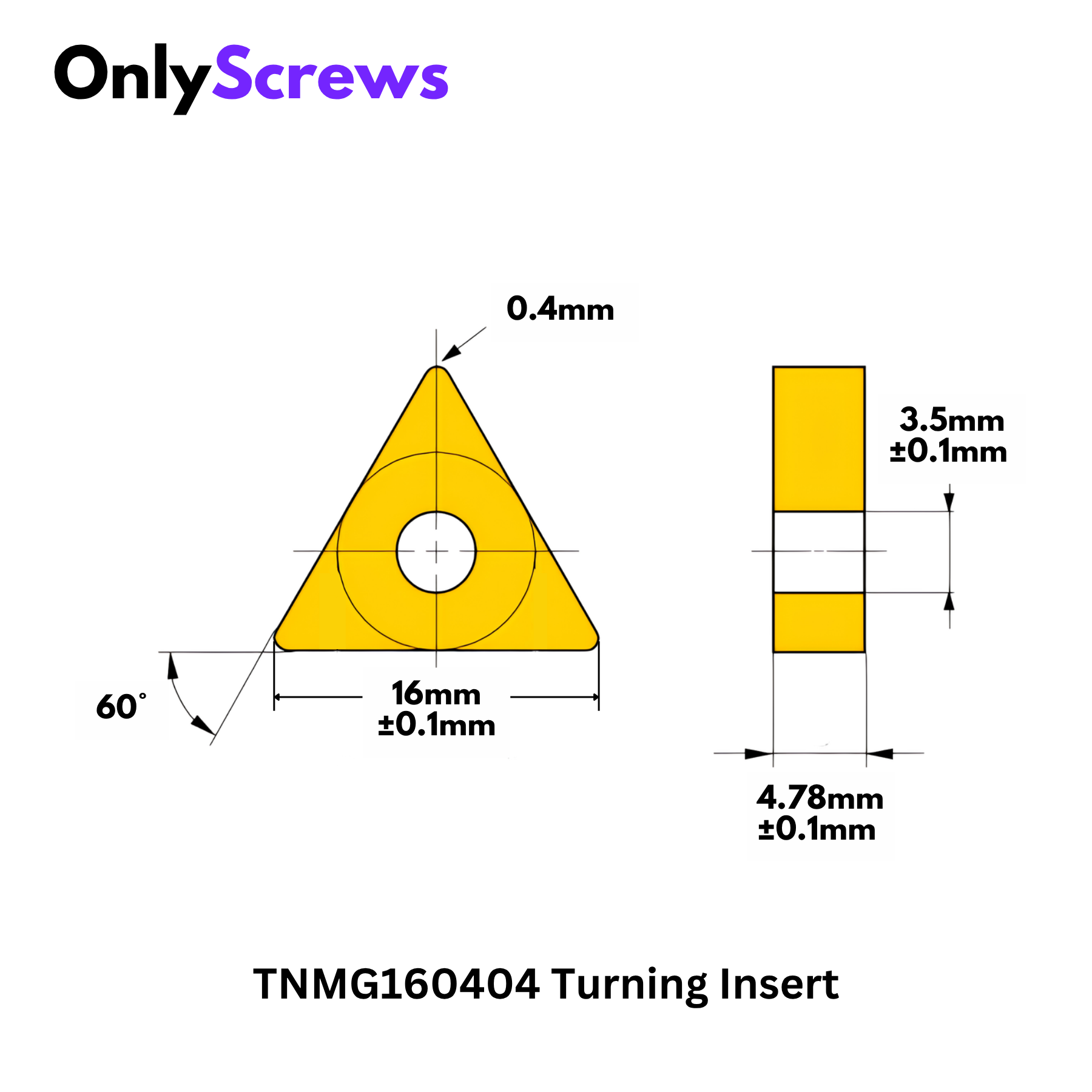

Insert Shape: T - Triangular / 60° Triangle
Clearance Angle: N - 0°
Tolerance Class: M
Insert Configuration: G – Cylindrical Hole with Chip Breaker Configuration
Insert Size: 16 – 16 mm Cutting edge length
Insert Thickness Code: 04 – 4.7mm Thickness
Nose Radius Code: 04 – 0.4mm
Fixing Hole Diameter: 3.5mm
Number of Usable Cutting Edges: 6

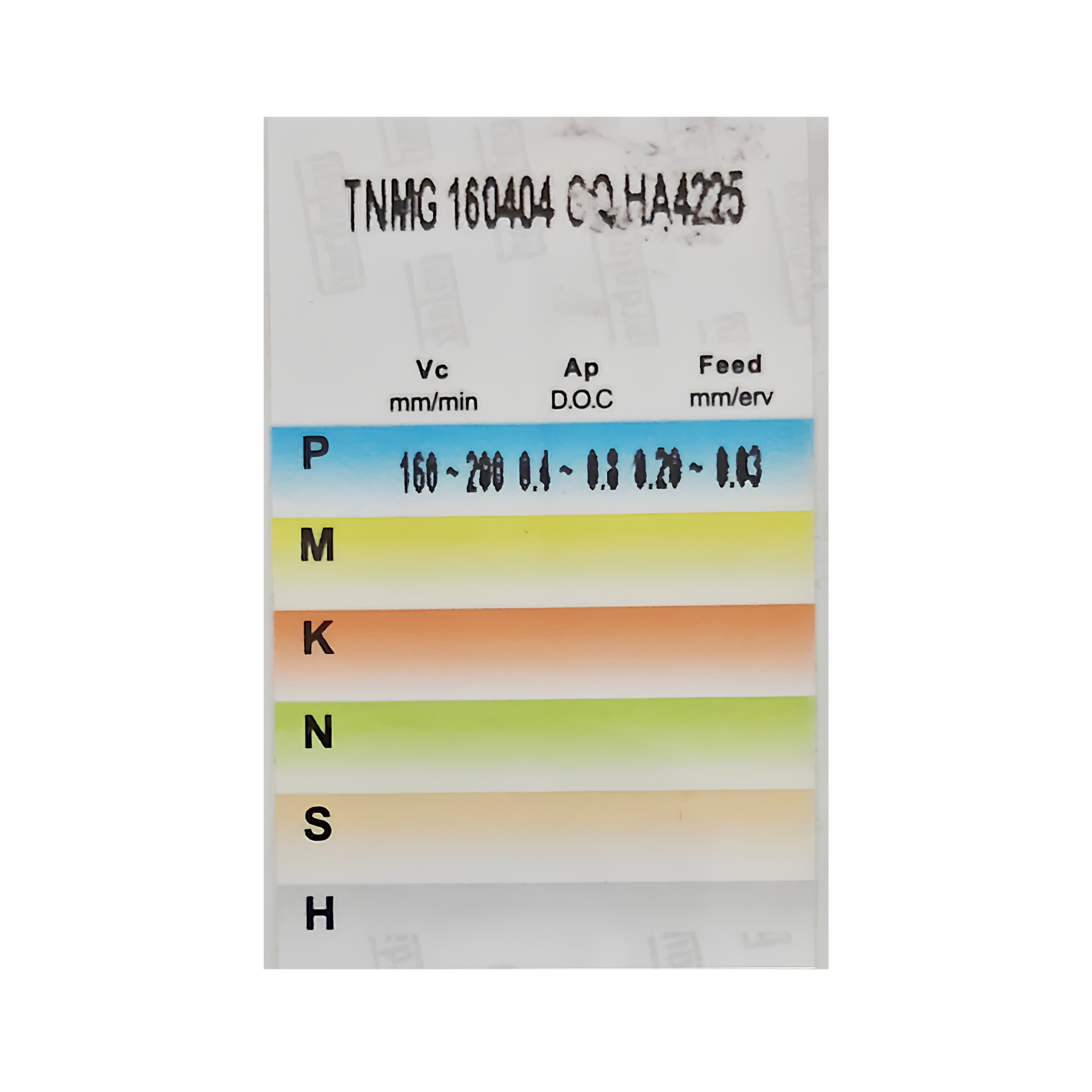

Cutting Speed (Vc): 160–200 m/min
Depth of Cut (Ap): 0.4–0.8 mm
Feed Rate: 0.03–0.20 mm/rev

Product Description

TNMG 160404 CQ HA 4225 Carbide Turning Insert is a negative triangular cutting insert designed for efficient steel turning and CNC machining applications. Its 60° triangular geometry provides six usable cutting edges, offering excellent insert utilization and cost-effective machining. The 0° clearance geometry provides a strong cutting edge for stable turning operations, while the 0.4 mm nose radius is suitable for controlled cutting and finishing applications.

Applications

• CNC Lathe Steel Turning
• External Turning
• Facing Operations
• Longitudinal Turning
• General Steel Machining
• Finishing & Light Machining
• Industrial Metalworking
• CNC Machine Tooling
