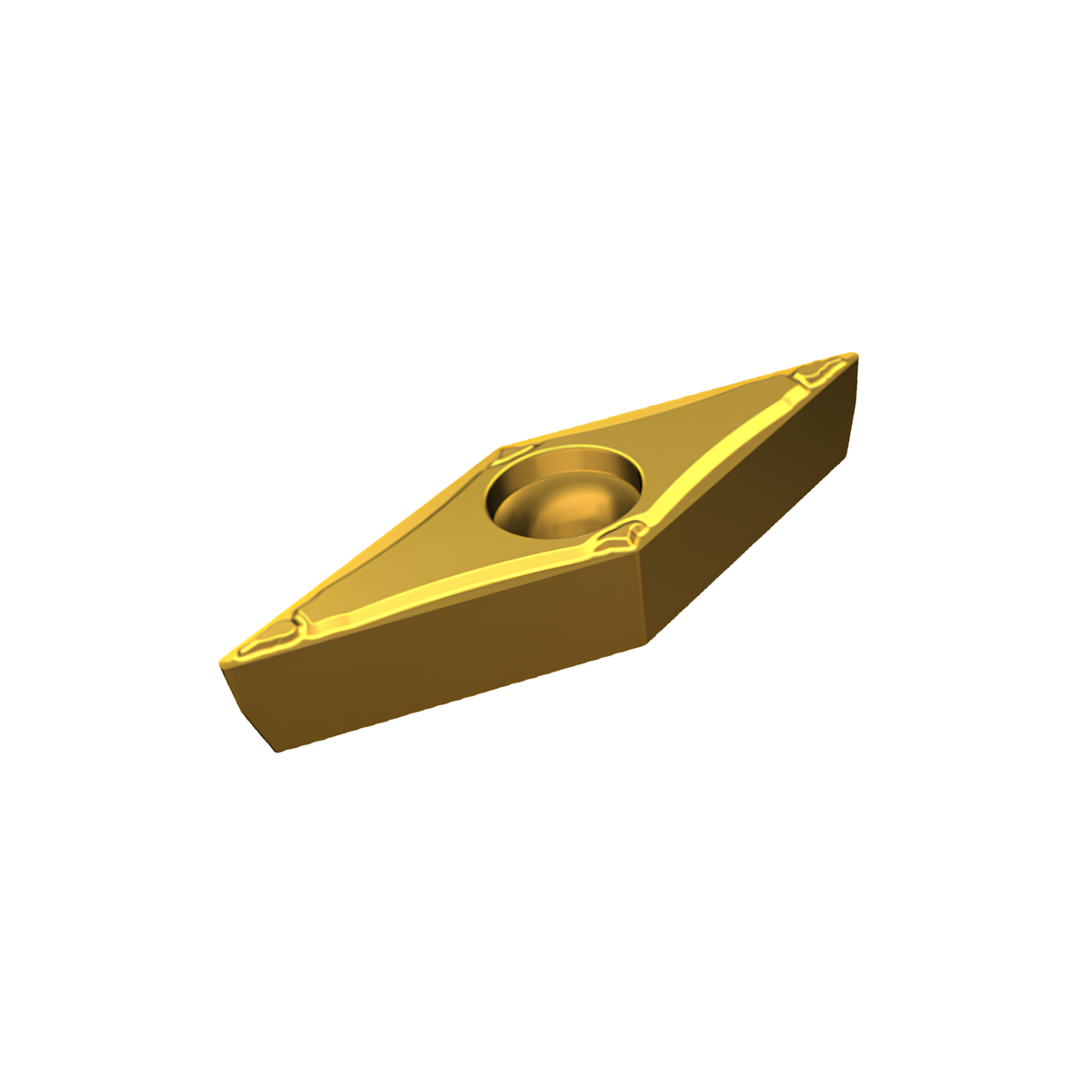

VBMT 160404 HA SM30 Carbide Turning Insert for Steel

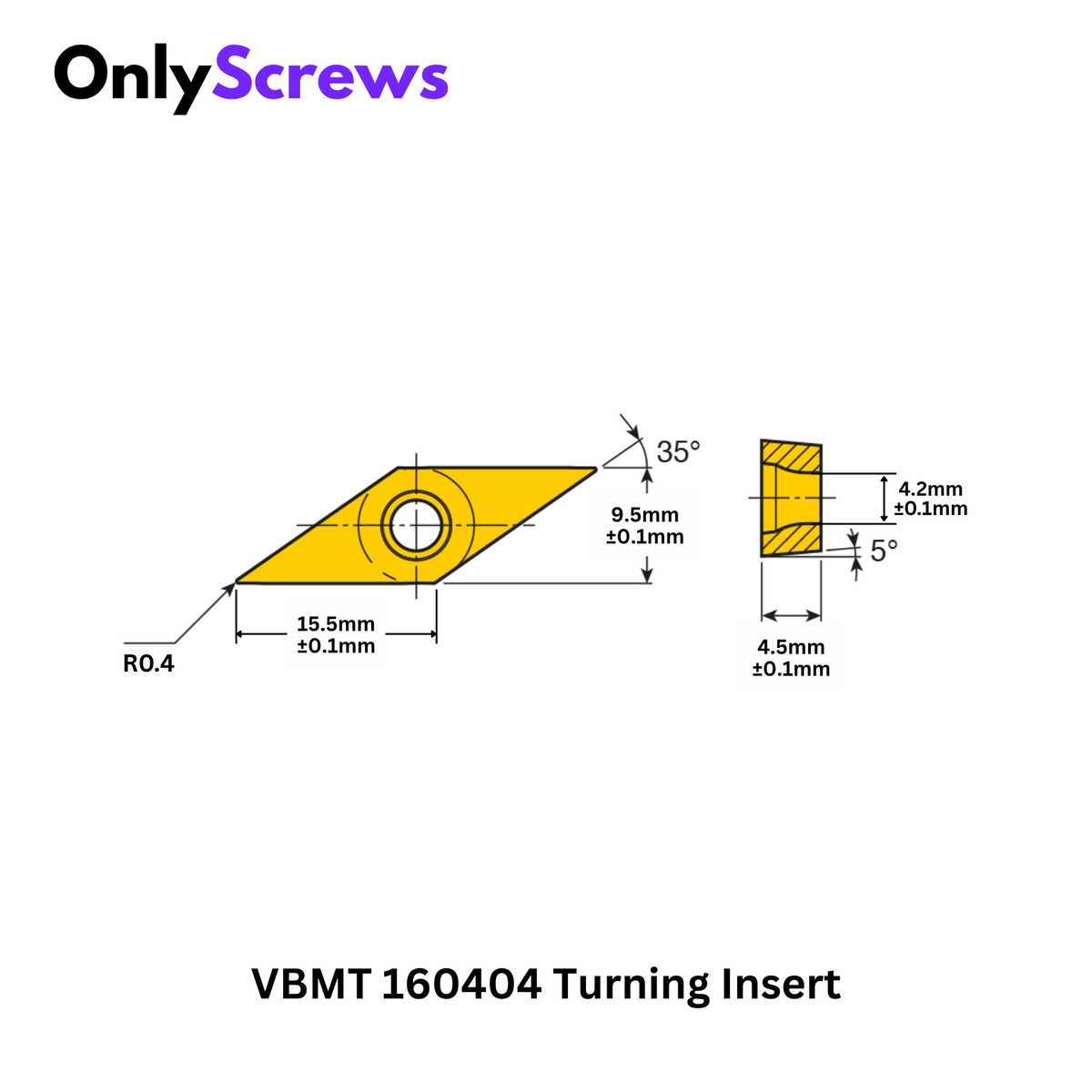

Insert Shape: V – 35° Rhombic / Diamond
Relief Angle: B – 5° Positive Clearance
Tolerance Class: M – Medium Tolerance
Hole / Clamping Type: T – Countersunk Centre Hole
Cutting Edge Length:15.8 mm
Insert Thickness: 4.5 mm
Corner Radius: 0.4 mm
Inscribed Circle Diameter: 9.5 mm
Mounting Hole Diameter: Approx. 4.2 mm
Number of Effective Cutting Edges: 2
Cutting Direction: Neutral
Application: CNC Turning

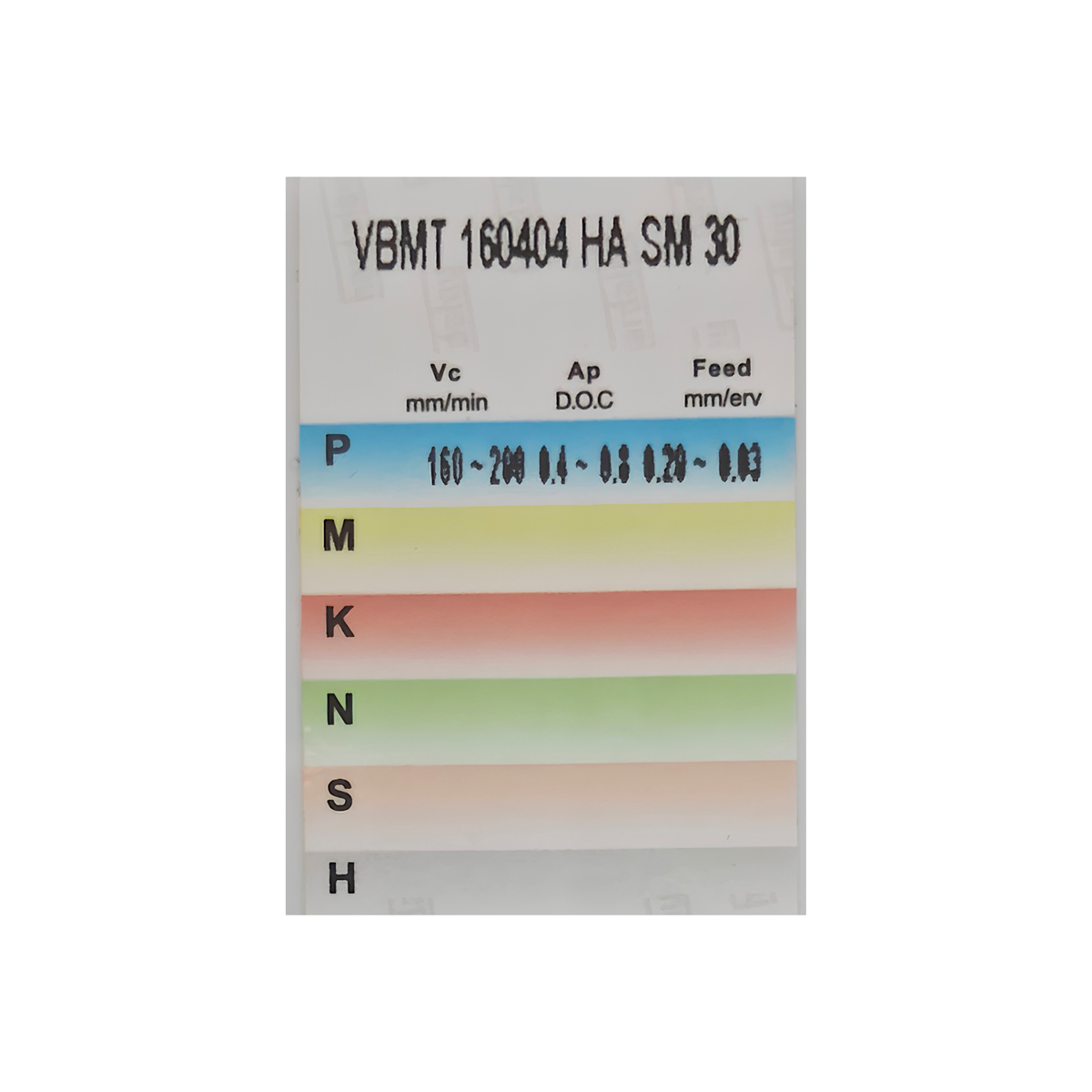

Cutting Speed (Vc): 160–200 m/min
Depth of Cut (Ap): 0.4–0.8 mm
Feed Rate: 0.03–0.20 mm/rev

VBMT 160404 HA SM30 carbide turning insert is a positive indexable insert designed for CNC turning, profiling, facing and contour machining. The 35° rhombic geometry and 5° positive clearance angle provide efficient cutting action and allow access to complex profiles. The 0.4 mm nose radius is suitable for finishing and light-to-medium turning operations.

The indexable design provides two effective cutting edges and allows quick replacement when an edge becomes worn, making it suitable for compatible VBMT tool holders and CNC lathe tooling.

Applications

• CNC external turning
• Internal turning with compatible holders
• Facing
• Profiling and contour turning
• Shoulder machining
• Finishing and light-to-medium machining
• Shaft and component machining
• General engineering and production turning
