VNMG 160408 HA 4225 Carbide Turning Insert for Steel

Insert Type: Negative Carbide Turning Insert
Material Application: Steel

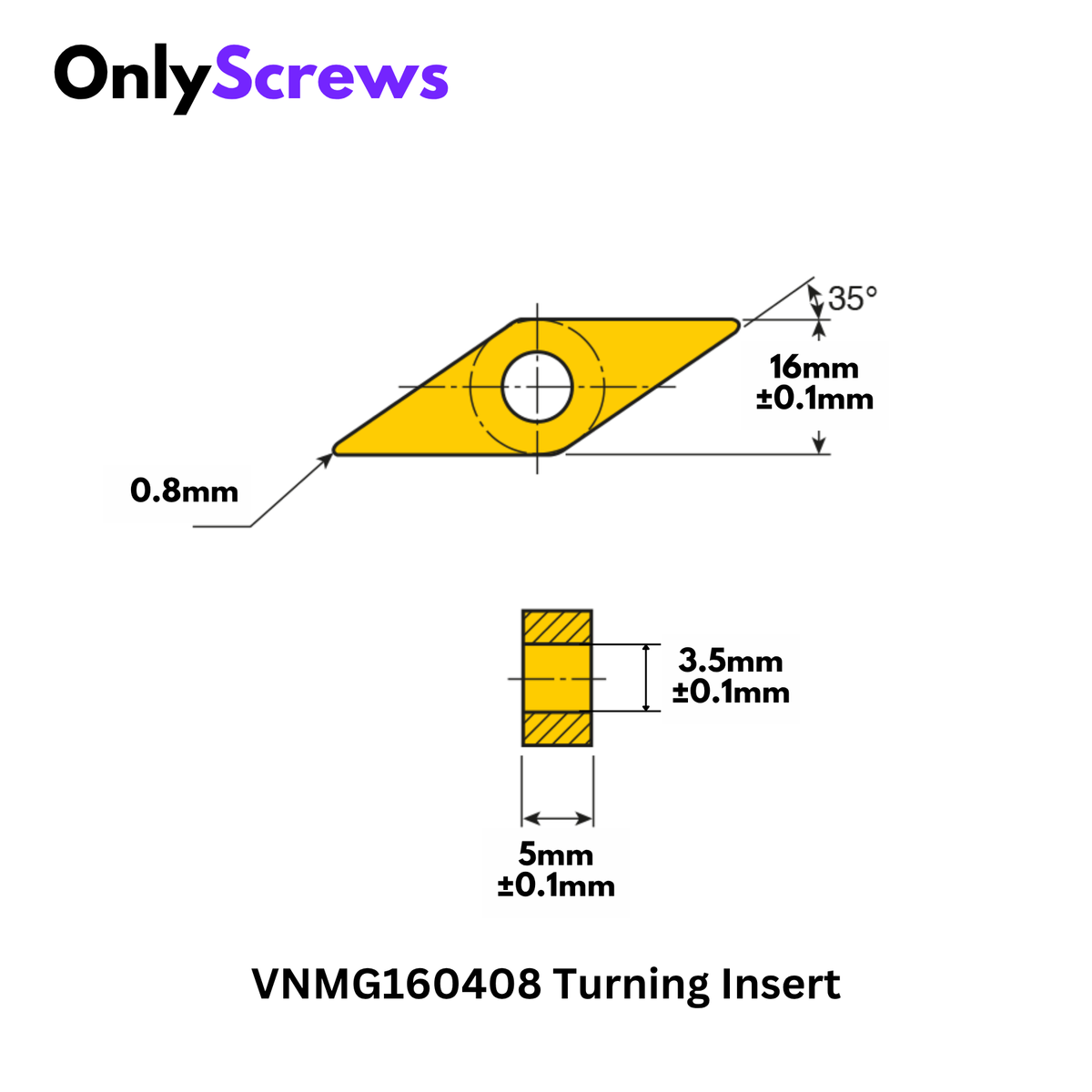

Insert Shape: V -  35° Rhombic
Clearance Angle: N - 0°
Tolerance Class: M
Insert Configuration: G – Cylindrical Hole with Chip Breaker Configuration
Insert Size: 16 – 15.8 mm Cutting edge length
Insert Thickness Code: 04 – 4.8mm Thickness
Nose Radius Code: 08 - 0.8mm
Fixing Hole Diameter: 3.5mm
Number of Usable Cutting Edges: 8

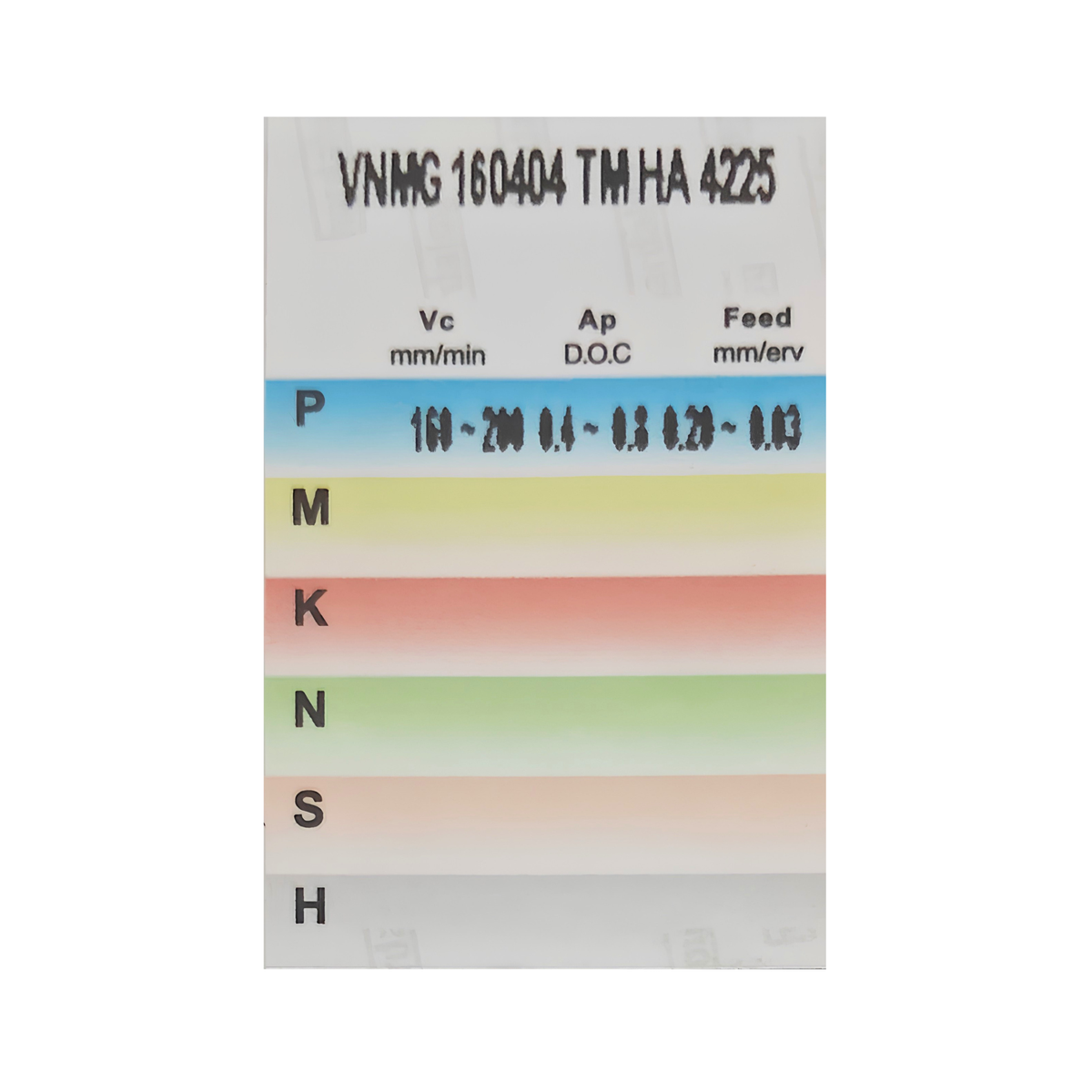

Cutting Speed (Vc): 160–200 m/min
Depth of Cut (Ap): 0.4–0.8 mm
Feed Rate: 0.03–0.20 mm/rev

Product Description

VNMG 160408 HA 4225 Carbide Turning Insert is a negative-style 35° rhombic cutting insert designed for efficient steel turning and CNC machining applications. Its strong cutting geometry provides stable machining performance, while the double-sided design offers four usable cutting edges for improved tool economy. Available with 0.4 mm or 0.8 mm nose radius options, making it suitable for finishing, semi-finishing, and general turning applications depending on the selected radius.

Applications

• CNC Steel Turning
• External Turning
• Facing Operations
• General Steel Machining
• Finishing & Light-Machining Operations
• Industrial Metalworking
• CNC Lathe Applications
